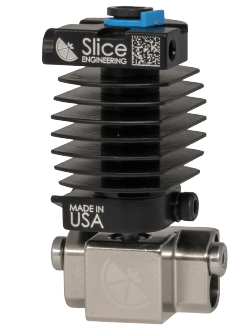

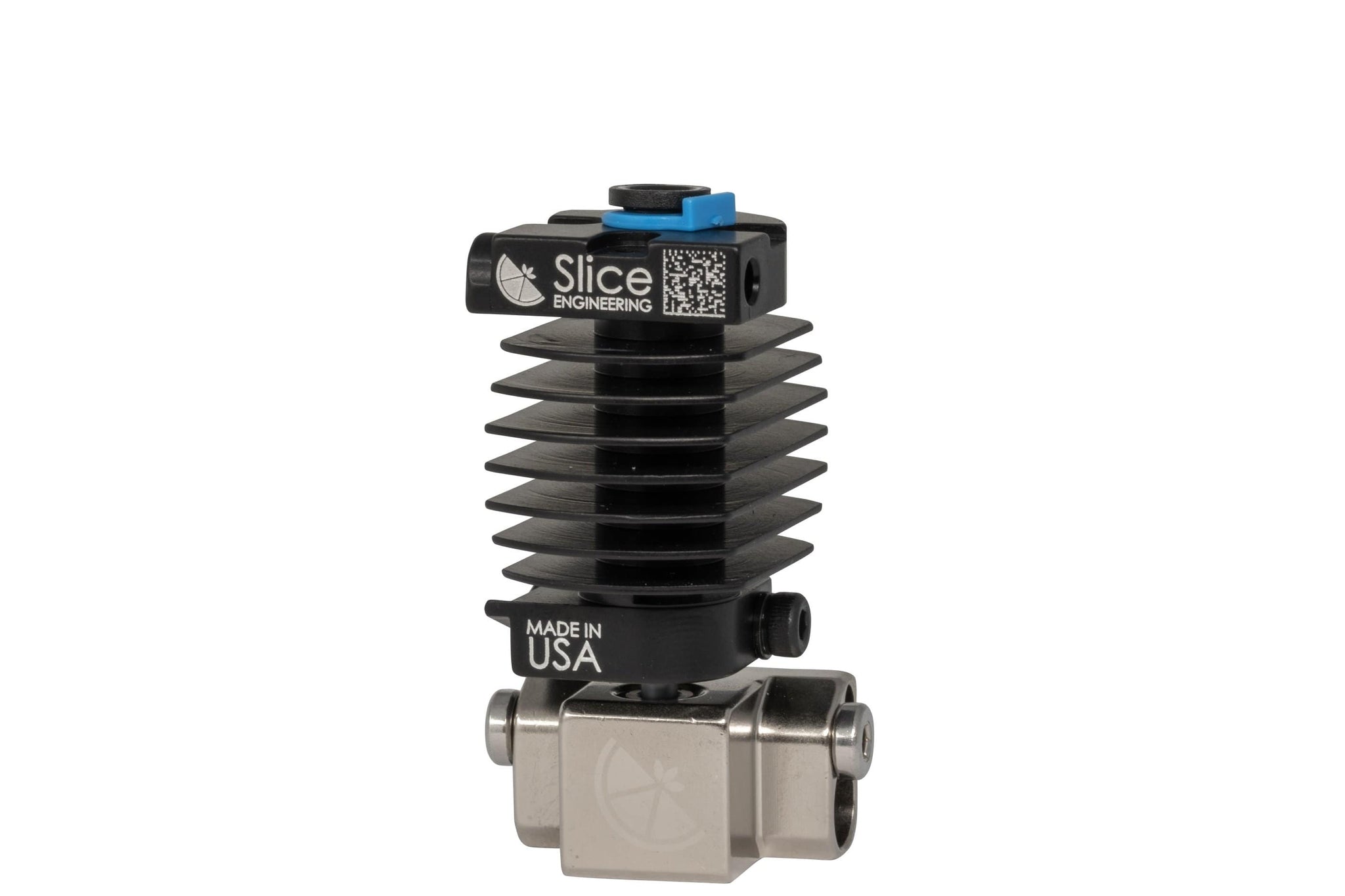

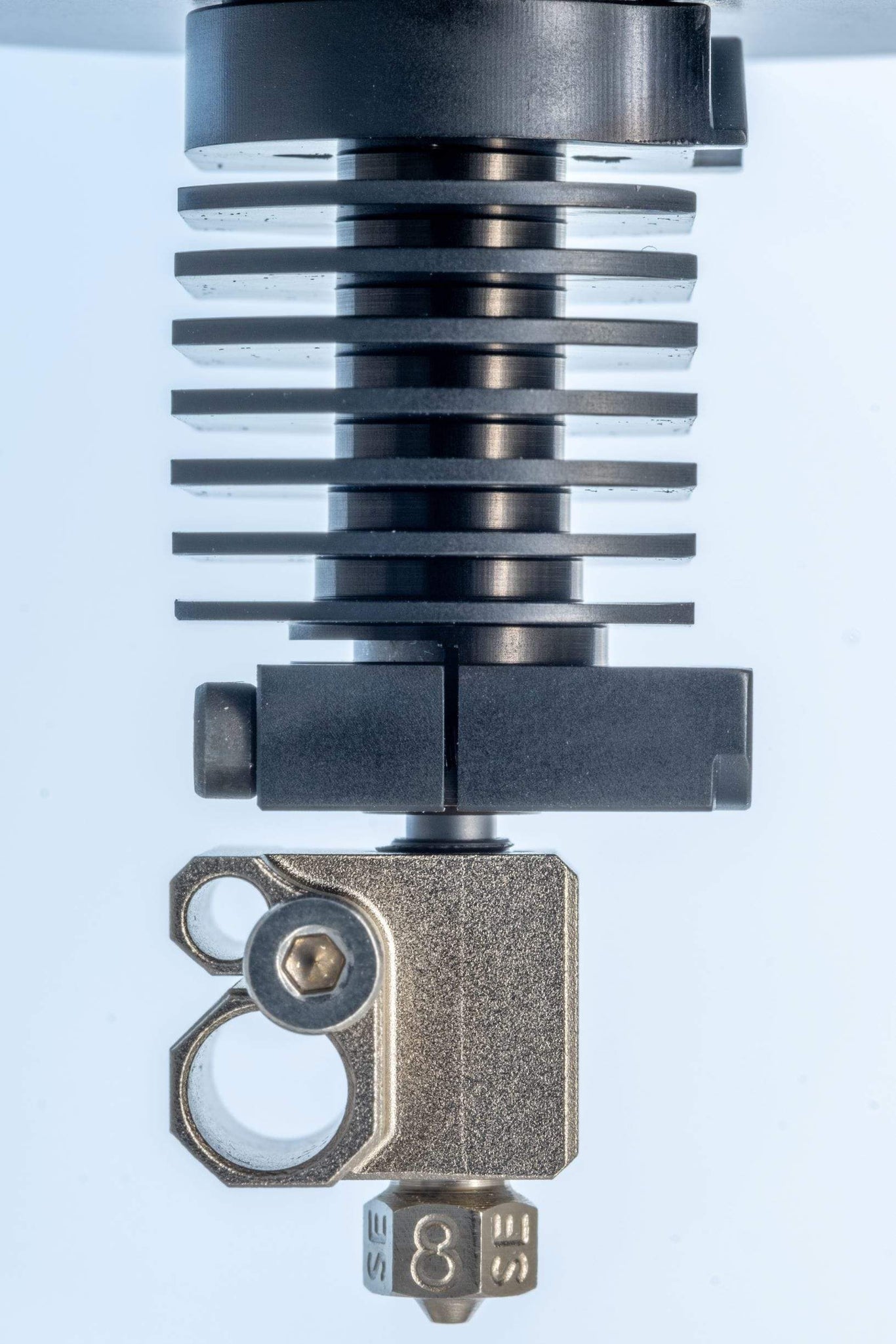

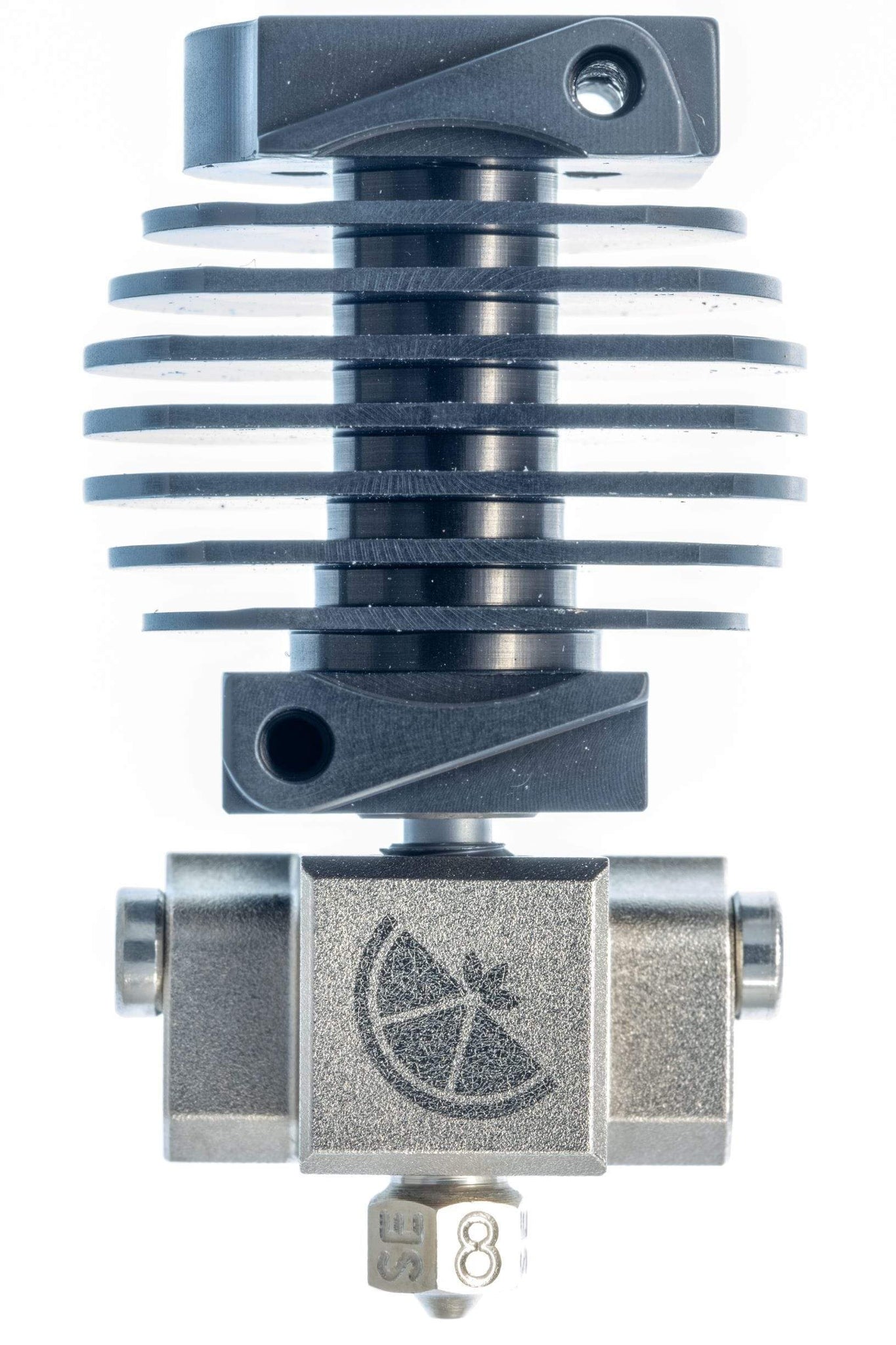

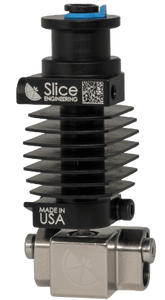

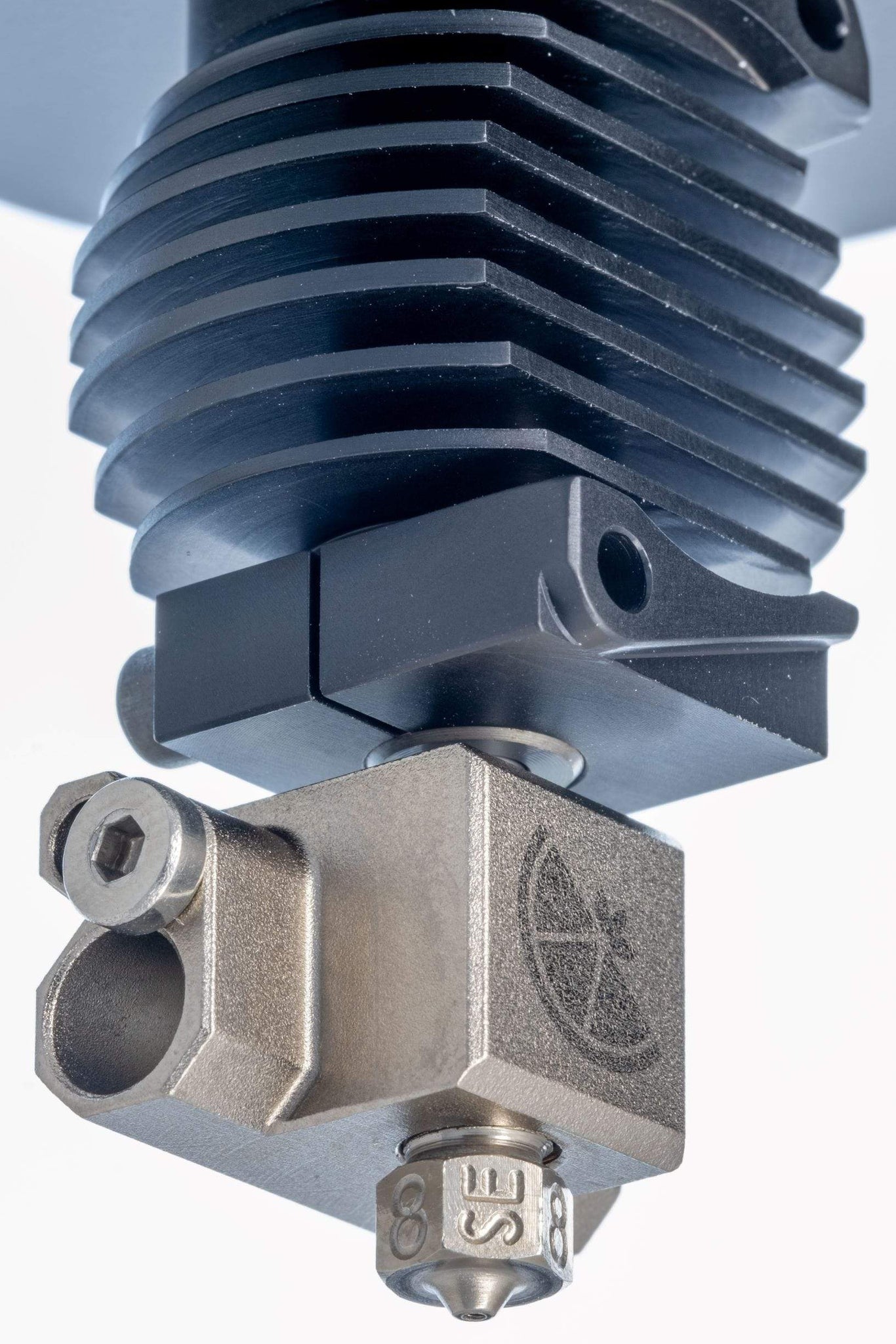

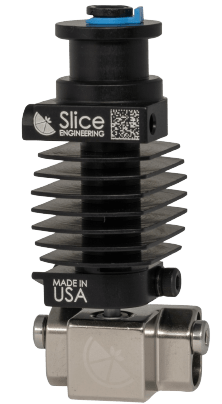

Slice Engineering Copperhead ™ Hotend System

• Rated to 450°C to cover the gamut of printable thermoplastics

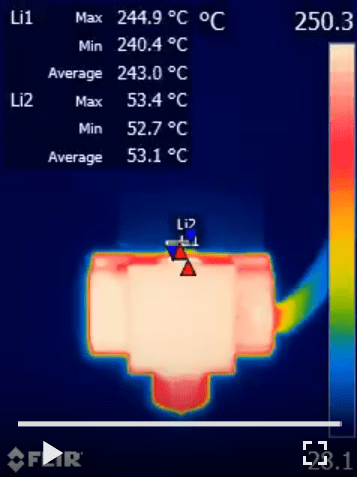

• Uses the same Bimetallic Heat Break™ technology found in the ground-breaking Mosquito™ hotend to optimize heat transfer
• High-quality materials, including a hardened copper alloy hot block, cold-worked stainless steel, and aircraft-grade aluminum
• Heat sink design optimized for noise reduction, with a directly mounted fan
• Adjustable z-height: clamps the heat break's circumference for optimal thermal contact, quick-swap capability for hot components, and adjustable length to level multi-extrusion systems
• Uses Rep Rap style nozzles (M6x1.0 thread)
• Versatile mounting options, including the familiar groove mount option
• Open source - published under a (CC-BY-SA 4.0) license
• Installation Instructions, Cad Models, Downloads, And Adapters at the bottom of the page.

• Made In the USA.

3D Printer Compatibility Table:

• Step 1: Find your 3D Printer in the table below
• Step 2: Use the letter code to find which Copperhead™ variant is compatible with your 3D Printer

Installation Instructions, Cad Models, Downloads, And Adapters:

Installation Instructions:

Copperhead™ Installation Instructions

3MF:

Copperhead™ Groove Mount w/nozzle
Copperhead™ Screw Mount w/nozzle

Dimensional Drawings:

Copperhead™ Drawings

STEP:

Copperhead™ STEP Files

Adapters:

Prusa Mini Copperhead™ Groove Mount Adapter

Prusa Mk3s Copperhead™ Groove Mount Adapter

Prusa Mk3s Copperhead™ Screw Mount Adapter

Creality CR-10s Pro Copperhead™ Groove Mount Adapter (Requires 25x25x10 mm fan)

Creality CR-10s Pro Copperhead™ Screw Mount Adapter (In Progress)
