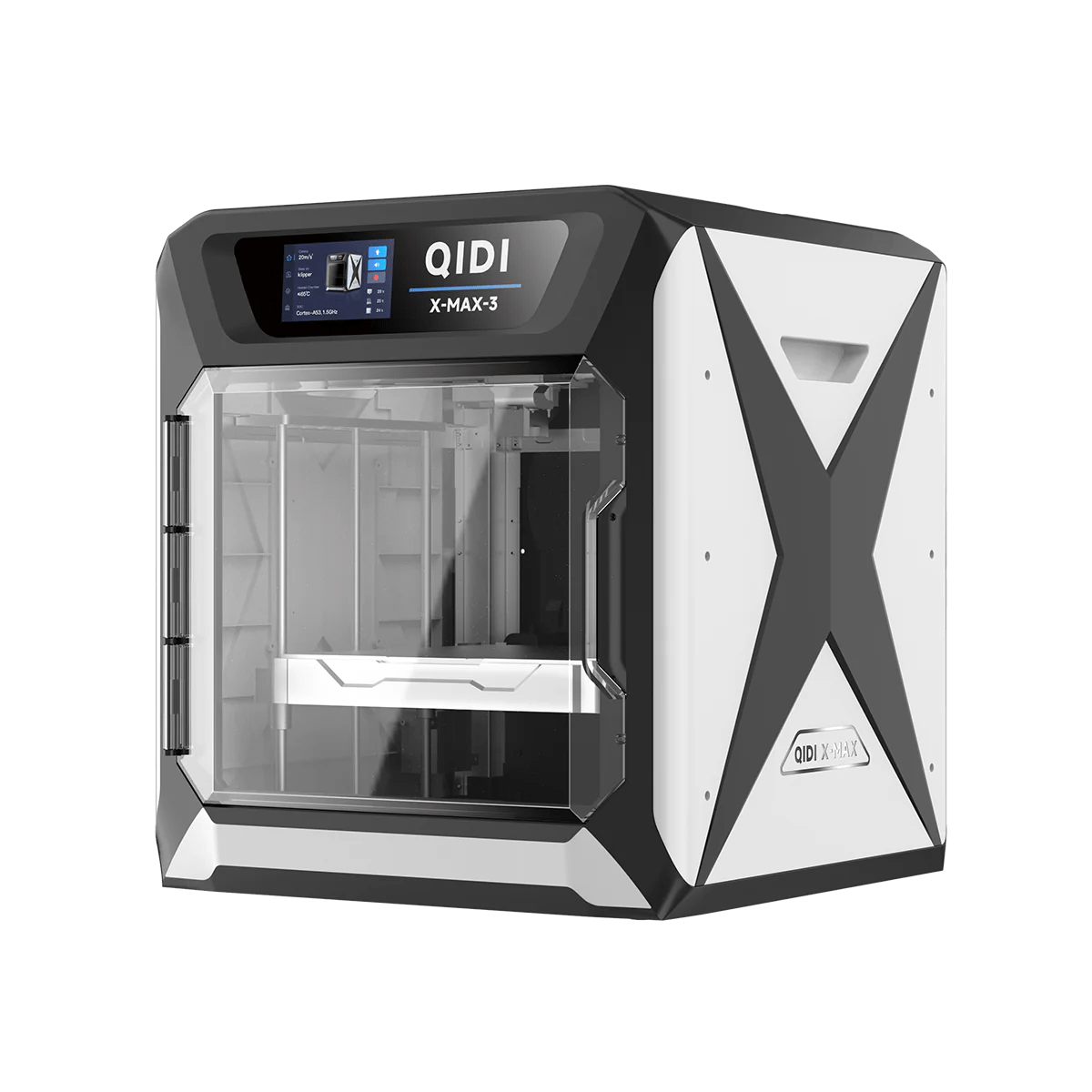

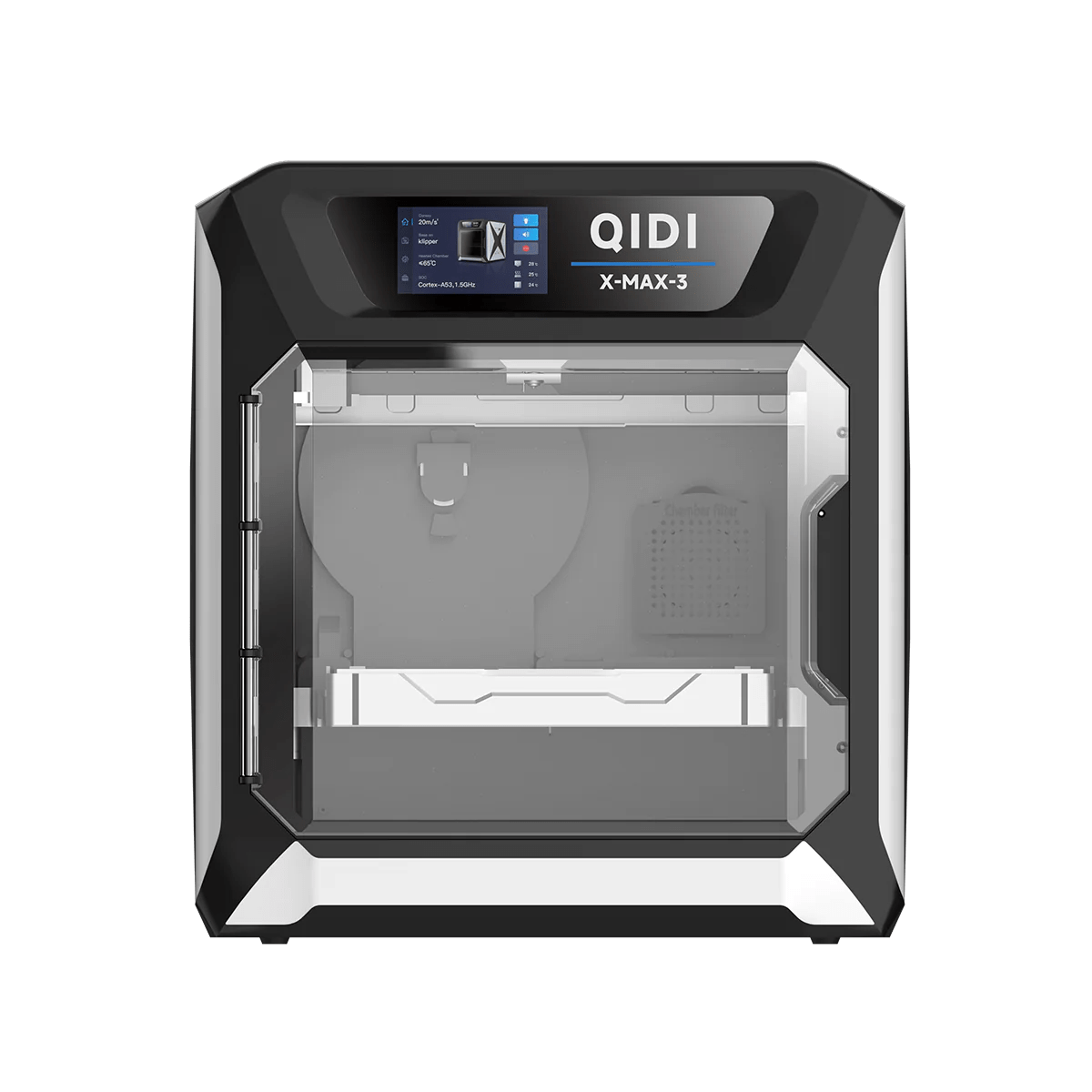

QIDI TECH X-MAX 3 3D Printer Large Size 3D Printers Fast Print High Precision Industrial Grade Fully Automatic Leveling Heated Chamber Large Print Size
The Newest X-MAX Model From QIDITECH Boasts Powerful Industrial Grade capabilities with an affordable pricing, this cutting edge machine is a force to be reckoned with.
QIDI TECH X-MAX 3 3D Printer Product Features
-
Plug and Play
The QIDI TECH X MAX 3D printer arrives fully assembled with a high-quality touch screen, an intuitive interface, and automatic leveling, ensuring ease of use straight out of the box. It's powered by Klipper firmware and features a CoreXY structure for enhanced performance.
-
High-Speed 3D Printing
The QIDI TECH X MAX 3 3D printer offers lightning-fast printing at speeds up to 600mm/s and rapid 20000mm/s² acceleration. It has a spacious 325x325x315mm printing area, making it one of the fastest and largest 3D printers available.
-
Sturdy and Durable
The QIDI TECH X-MAX 3 3D Printer has an ultra-stable all-metal frame and a robust 6mm thick aluminum heatbed plate. It's equipped with a 10mm wide belt and ⌀10mm hardened hollow steel linear shafts, ensuring consistent and maintenance-free printing. This design is meant to last a lifetime without needing frequent replacements. Additionally, it includes dependable 3D printer accessories, reducing printing-related concerns.
- Versatile Printing Materials
QIDITECH high-performance filaments are perfectly compatible with the X-MAX 3, including PA12-CF, PET-CF, PAHT-CF, ABS-GF, and more.
You can easily print standard materials like PLA, ABS, ASA, PETG, TPU, or experiment with specialty filaments like PC, PA, carbon fiber, and glass fiber. This printer offers flexibility to accommodate a wide range of printing needs while remaining affordable. - Fast and Precise Printing
The enclosed chamber heating system and dual cooling fans ensure exceptional print quality and precise detail capture. Features like Input Shaping and Pressure Advance guarantee outstanding results whether you're working on intricate designs, small-scale prototypes, lab models, or artistic creations. - About QIDITECH X-MAX-3
The X-MAX3 comes with open-source Klipper firmware and QIDI slicer software for easy remote control and customization, including the addition of cameras. It includes a free one-year warranty and lifetime technical support from the QIDI Tech team.
QIDI TECH X MAX 3 3D PRINTER TECHNICAL SPECIFICATION
Machine Name |
|||
X-Max3 |
Technology |
FDM |
||
Build Volume (W×D×H) |
325*325*315mm |
||
Dimensions (W×D×H) |
553*553*601mm |
||
Net weight (kg) |
30.2 |
||
Printing Speed |
≤600mm/s |
||
Extruder Flow: |
35mm³/s @PLA Matte(Model:150*150mm single wall; Material: PLA Rapido Matte;Temperature: 240℃) |
||
Extruder Temp |
≤350°C |
||
Hotend (Included) |
Copper alloy nozzle hotend For Common materials |
||
Hardened steel nozzle hotend For Abrasive materials |
|||
Auxiliary Part Cooling Fan |
✔ |
||
Chamber Temperature Control |
65°C Independent Chamber Heating |
||
Chamber Circulation Fan With Activated carbon air filter |
✔ |
||
Screen |
5.0 inch |
||
800*480 touch screen |
|||
Seal print |
Dryer Box + Desiccant |
||
Connection Options |
150M 2.4G Wi-Fi USB Flash Drive/Ethernet Cable |
||
Rated Power |
900W |
||
Recommended Filament |
PAHT-CF,PET-CF,PA12-CF |
||
Compatible filament |
PLA, ABS, ASA, PETG, TPU, PC, UltraPA, Nylon, etc. |
||
Structure |
CoreXY |
||
Z Axis: |
Double Z axis |
||
X axis |
High-grade hardness steel linear hollow optical axis |
||
Firmware: |
Klipper |
||
Printing Acceleration: |
20000mm/s² |
||
Printing Accuracy: |
±0.1 mm |
||
Filament diameter: |
1.75mm |
||
Bed Leveling: |
Automatic Leveling |
||
Extruder transmission ratio |
9.5:1 |
||
Hot end: |
Ceramic Heating Core |
||
Extruder: |
High-flow Direct Drive Extruder |
||
Nozzle diameter: |
0.4mm (0.2,0.6,0.8mm Optional) |
||
Hot bed temperature: |
≤120℃ |
||
Printing Plate: |
Double-Sided Flexible Magnetic HF Plate |
||
Filament Detection: |
Yes |
||
Resonance Compensation: |
Yes |
||
Pressure Advance: |
Yes |
||
Voltage: |
100-240VAC, 50/60Hz |
||
Main Processor: |
Cortex-A53,64-bit Processor |
||
1.5Ghz,8G-EMMC,1G DDR3 |
|||
Slicer: |
QIDI Print and other third-party software, such as Ultimaker Cura, Simplify3D, PrusaSlicer, etc. |
||
Operating System: |
Windows, MacOS, Linux |
||
Assembled |
Assembled and First Print within 10 minutes |
