i2rCNC EXECUTIVE SERIES - CNC 16 - 3HP SPINDLE - 4' X 4' - 220V - COMPLETE BUNDLE

  • Prix réduit
    $21,300.00
    Prix normal
    $24,499.00 You save 13%
    Prix unitaire
    par
    5% OFF | FREE Shipping | Coupon Code:3DPSALE | Ends:
    Frais d'expédition calculés lors du passage à la caisse.

    Availability:

    Estimated Arrival: Between Oct 12 and Oct 18. *ETA to USA Only

    Shipping & Returns: Free Shipping U.S.A wide for All Orders Over $99!

    Why Buy From 3D Printernational

    i2rCNC EXECUTIVE SERIES - CNC 16 - 3HP SPINDLE - 4' X 4' - 220V - COMPLETE BUNDLE

    A powerful CNC Machine bundle that comes complete with everything you need to get up and running, including training and onboarding a real business in a box solution with ease of access, efficiency and functionality in mind.

    i2rCNC EXECUTIVE SERIES - CNC 16 - 3HP SPINDLE - 4' X 4' - 220V - COMPLETE BUNDLE Product Features

    • Easy to Assemble CNC Machine
      This CNC machine is very intuitive and easy to assemble, designed with comfort and ease of use to make sure you have maximum uptime out of the box.

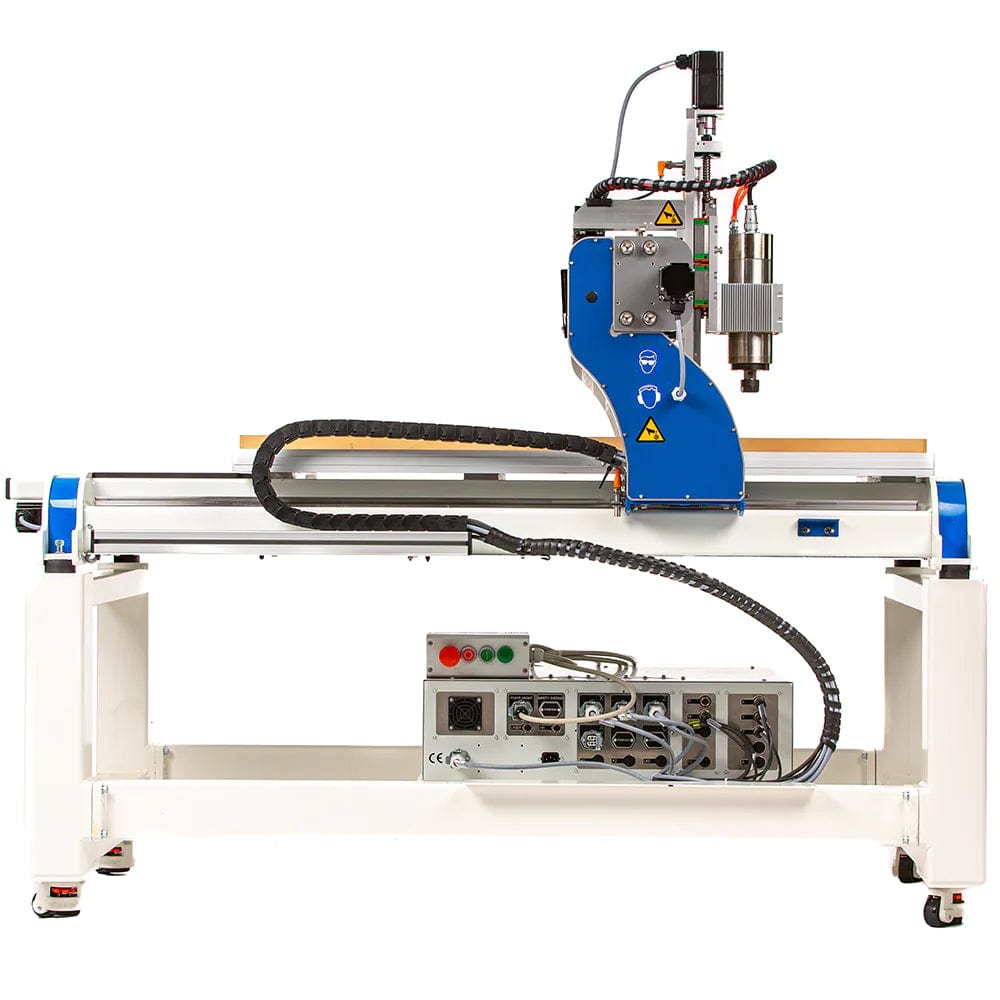

    • Heavy Duty Stand

      Full steel constructed stand that holds your CNC stable.
      Allows for easy access for ballscrew maintenance under the machine.
      This heavy duty stand gives your machine the portability you need incase you want to move it out the way. Can also  house your tool box giving you extra storage space and expansion while keeping your workspace clean and tidy.

    • UCCNC Software
      Comes complete with Touch Screen Support, Real Time Control , 3D Feedback During Cuts , Reads G-Code and you can  Control Everything Straight From Your PC

    • Full License of Vectric Pro Software

      Vetric VCarve Pro gives you the power to produce complex 2D patterns with profile, pocket, drill and inlay toolpaths, plus gives you the ability to create designs with v-carving textures as well as import and machine unlimited Vectric 3D clipart or single model files along with unlimited job and toolpath size, true shape nesting & job set-up sheets, ideally suited to a production environment.

    • Dust Shoe specifically designed for your machine
      The Dust shoe provides an effective dust extraction solution for your new i2R CNC router and tailored specifically for your machine.

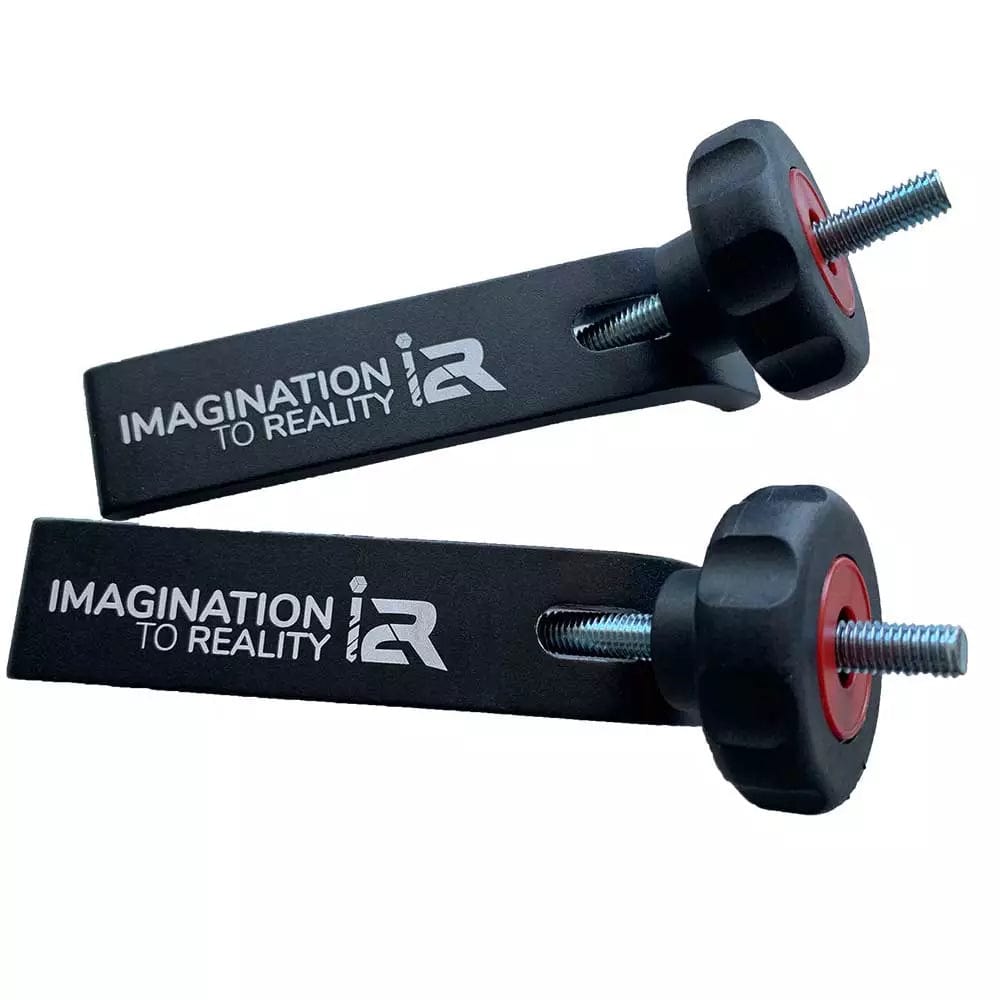

    • 4 x I2R Hold Down Clamps
      The robust 5/16” T-bolt slides easily into the extruded table T-slots, and is long enough to capture nearly any material up to 3” thick. The aluminum clamping arm is 1-1/8” wide by 5-1/4” long, and is anodized to avoid marking of your materials. A large, knurled handle allows you to easily tighten to the desired pressure.

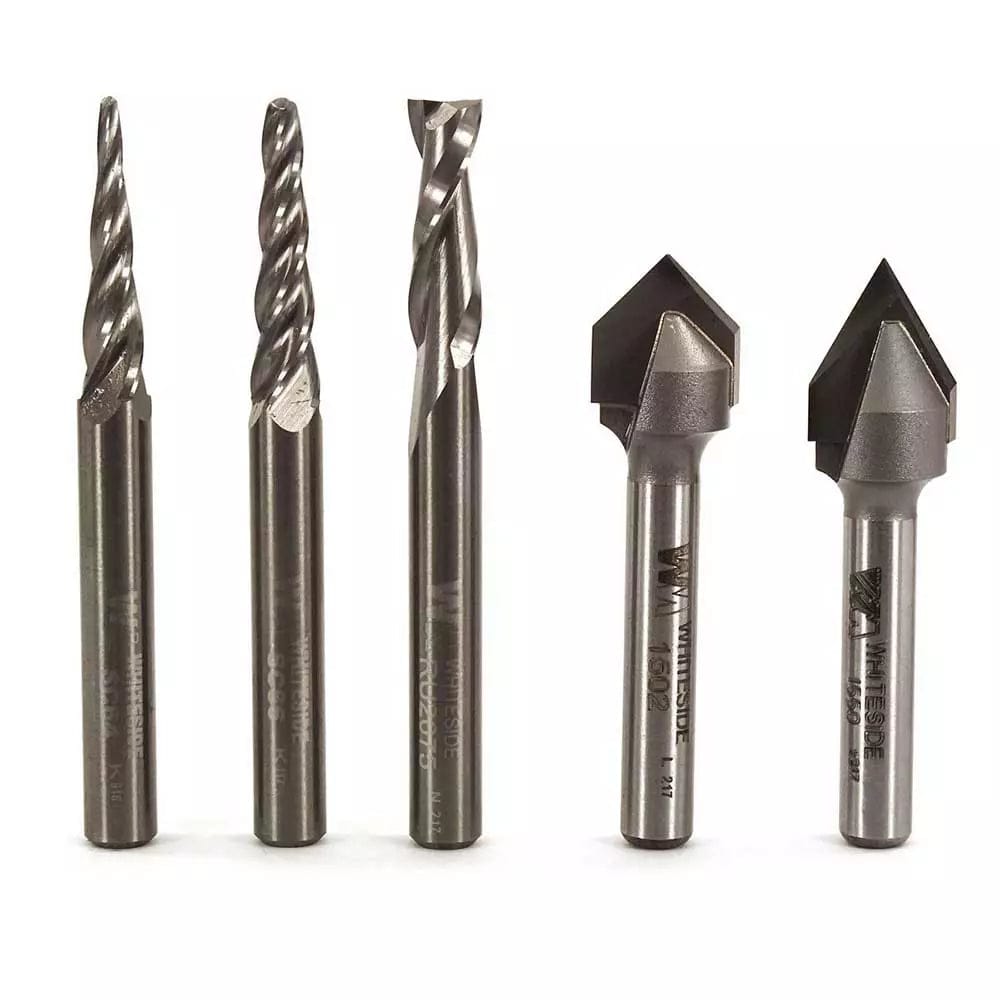

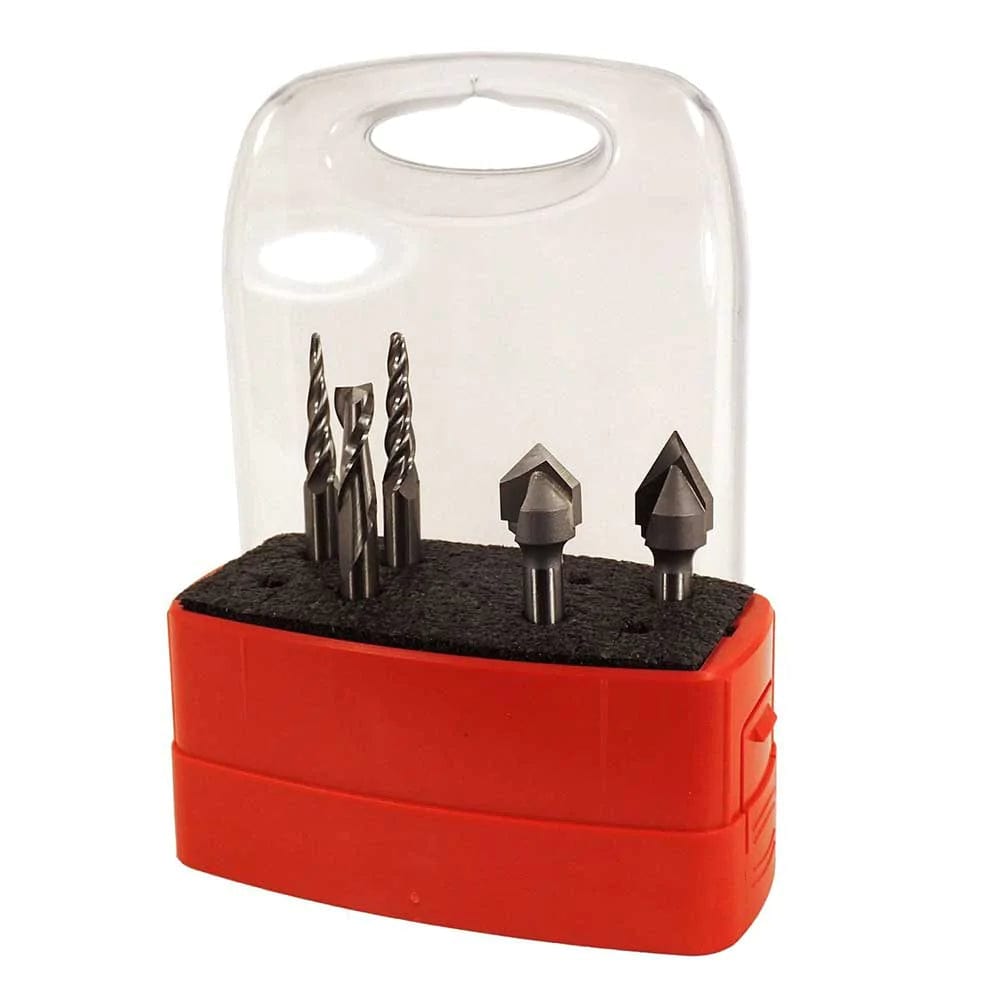

    • Whiteside 705 Starter 5 PC Bit Set

      Have just the CNC router bit you need when you start designing with your CNC machine with the Whiteside 5-Piece CNC Router Bit Starter Set.
      Each included bit can be used in a variety of CNC carving applications such as stock removal, signs and intricate detail work. Solid carbide.

    • 1 on 1 Software Training Session ($497 Value)
      The I2RCNC Virtual Training Session is a one-hour 1 on 1 Virtual session.
      In this session, we train you on your machine. This Session is perfect once your machine is set up and ready to use.
      In this training, You will go through CNC Software and Functionality, Machine Buttons and Functionality , Tools and Machine Features ,We even connect remotely to your computer if needed to get you up and running
      After this session, you'll have a solid foundation to start creating your own designs.

    • 1 on 1 Onboarding Call ($197 Value)
      The I2RCNC Virtual Onboarding Session is a one-hour 1 on 1 Virtual session.
      In this session, You will be in contact with an i2r Expert over everything that was received on your new machine. You will go over each item and show you how to properly set up your machine to start cutting right away.

    • Lifetime Customer Service
      i2rCNC Experts are readily available for you and will have your back every time you need them for greater peace of mind and maximum uptime if you ever incur a problem.

    • Remote Login Support
      i2r Experts can provide Remote Login support for any assistance cast necessary.







    I2RCNC E16 (4X4)

    TECHNICAL SPECIFICATIONS



    TRAVEL:

    I2RCNC E16 (4X4)

    • X axis: 1220mm (48″) Nema 34 NM High Torque Steppers
    • Y axis: 1220mm (48″) Nema 34 NM High Torque Steppers
    • Z axis: 200mm (7.87″) Nema 23 2.5NM high torque steppers

    TABLE WORK AREA::

    • i2R Exec 16: (48″ x 48″)

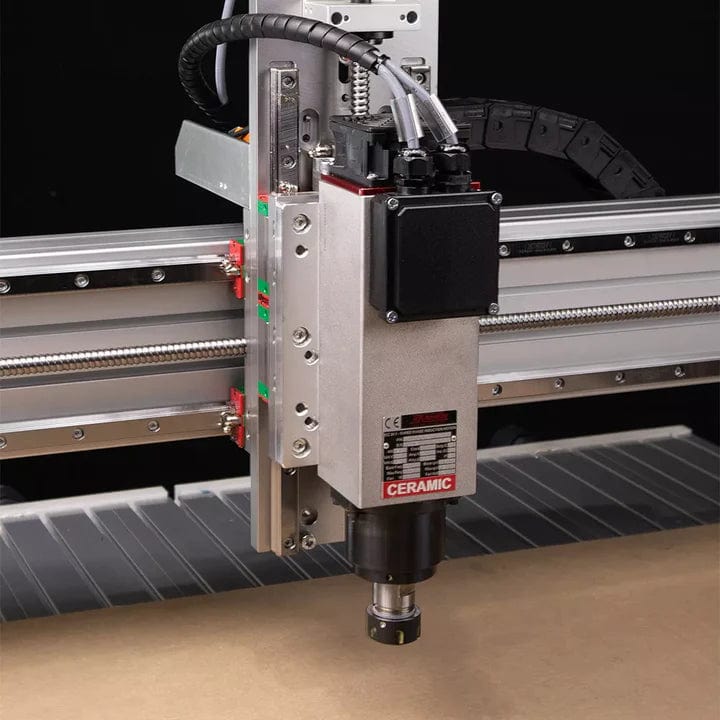

    SPINDLE:

    • Spindle Speed : 0~24000rpm
    • Standard: 2.2kW ER20 water cooled spindle as standard
    • Optional: 2.2kW ER25 collet Italian Tekno air cooled spindle with ER25 collet system | please contact us

    MAXIMUM FEED RATE:

      • X-, Y-, and Z-Axis: 400 in./min - 1,081 in./min  Stepper/Servo

    We will provide test report upon completion ( Machine is tested until stall)

    POWER REQUIRED:

    • 230v 1phase - main machine will run off a 13A single phase supply.
    • Vacuum pump supply will be separate – see vacuum.

    MACHINE SPECIFICATIONS:

    i2R-Exec 16

    • Floor space requirement:
    • Machine Weight: 1800 lbs
    • Gantry Clearance (standard): 200mm clearance – & repositionable Z height

    LINEAR MOTION COMPONENTS:

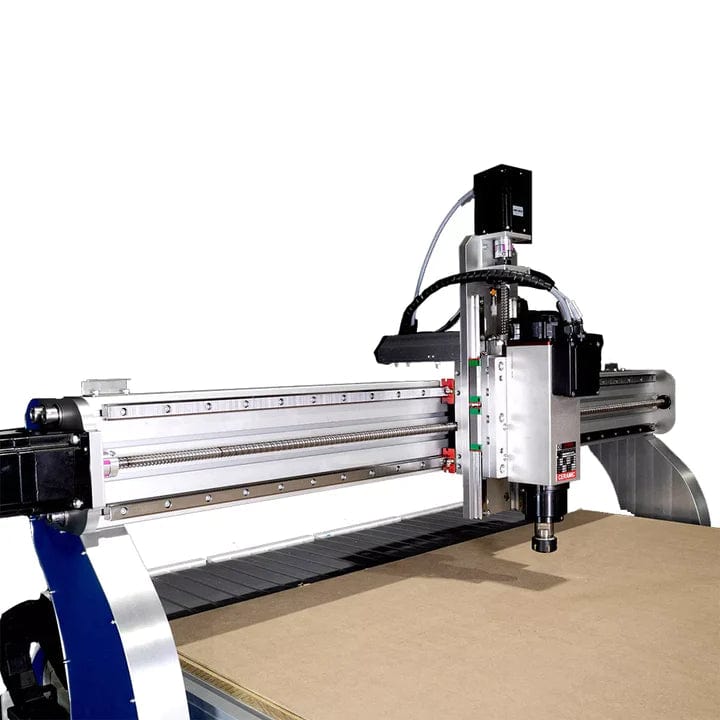

      • HIWIN Profiled linear rail system size – a massive 20mm in X, Y, Z | 4 full carriages per axis
      • Precision BallScrew X/Y/Z
      • 50μm pitch error over 300mm and typical repeatability of 20um.
      • BallScrew Diameter 16mm NOTE - 400W AC Servo Models will run 20mm ballscrews on X and Y Axes.

    Exec 16: Two 16mm Ballscrew on Y Axis & One 16mm Ballscrew on X and Z

    MACHINE CONSTRUCTION:

    • Machine Base: All Welded Steel Frame
    • All steel frame - 10mm steel laser cut - 80 x 40 steel box section with 5mm wall thickness. Precision machined on aerospace machining center before rail and ballscrew end condition assembly
    • Gantry Bridge: 160x80mm heavy duty Maytech Alloy Bridge
    • Gantry Supports: FEA designed webbed upstand construction

    RESOLUTIONS & ACCURACY:

    • Positional Accuracy +/- 0.02mm (.0007”)
    • Repeatability <0.02mm
    • We perform a geometric accuracy test to each machine we produce
      All of our measurements are made with Mitutoyo calibrated instruments

    CONTROLLER:

      • High voltage stepper controller system with full UCCNC control.

    ACCESSORIES (INCLUDED):

    • Tool Touch Off
    • MDF Spoilboard
    • Wrenches
    • Ethernet Cable

    ACCESSORIES (OPTIONAL):

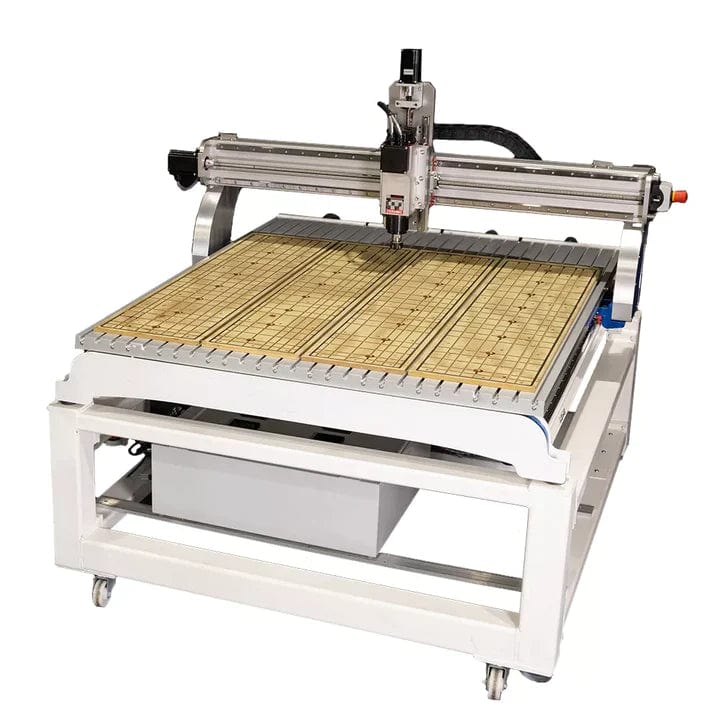

    • VAC Table
    • VAC Pump As standard 1 x 2.2kW side channel blower
    • VAC Table upgrade to factory installed grid square suction table with access to the T-slots maintained every 3-400mms) | contact us
    • 2.2kW ER25 collet Tekno air cooled spindle with ER25 collet system | contact us

    AVAILABLE EXPANSION PORTS:

    • Compatible with air solenoid for coolant
    • Compatible with fixed touch off system
    • Compatible with OPT laser system
