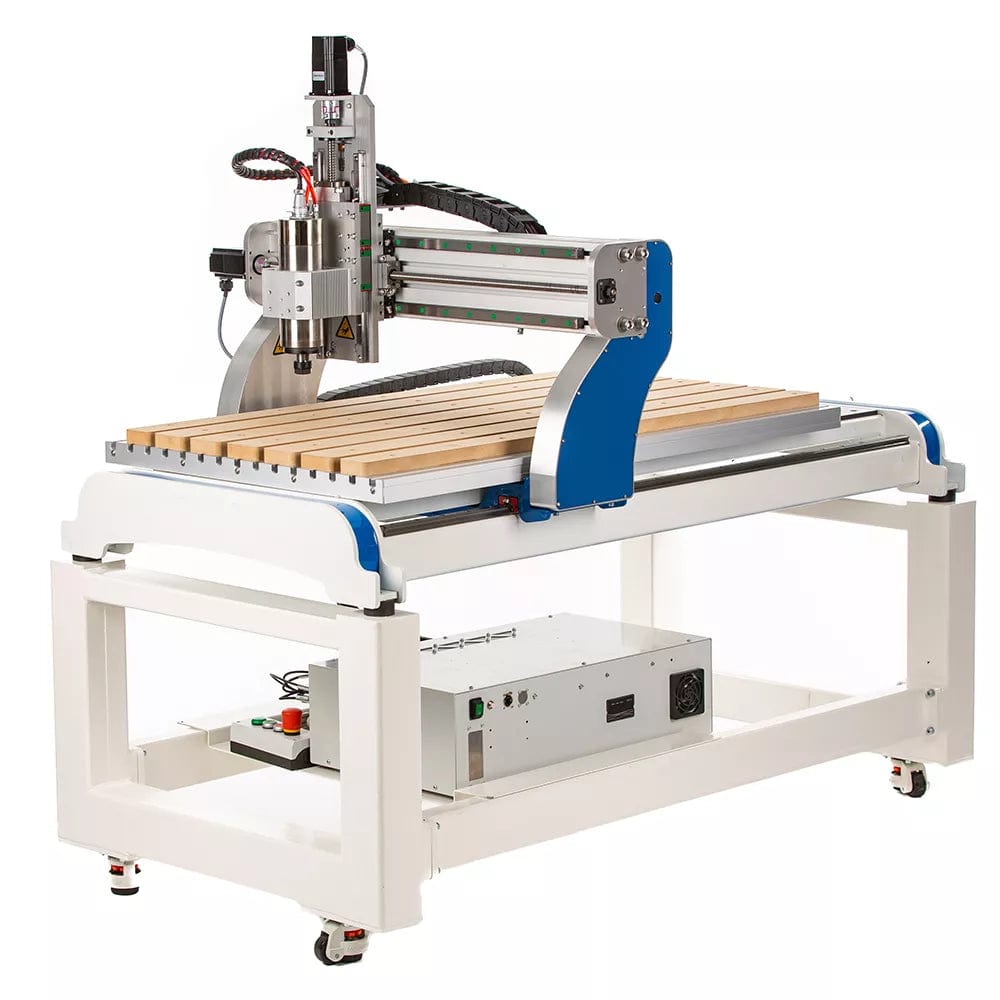

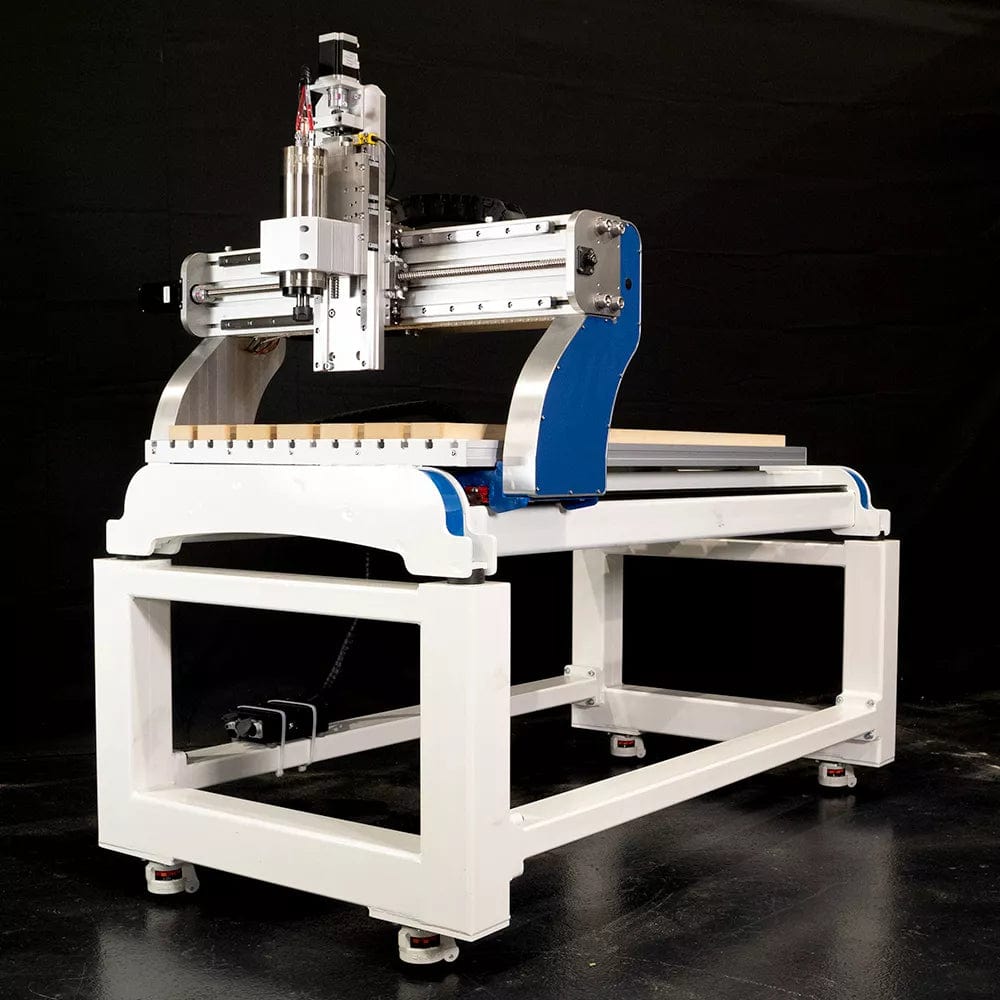

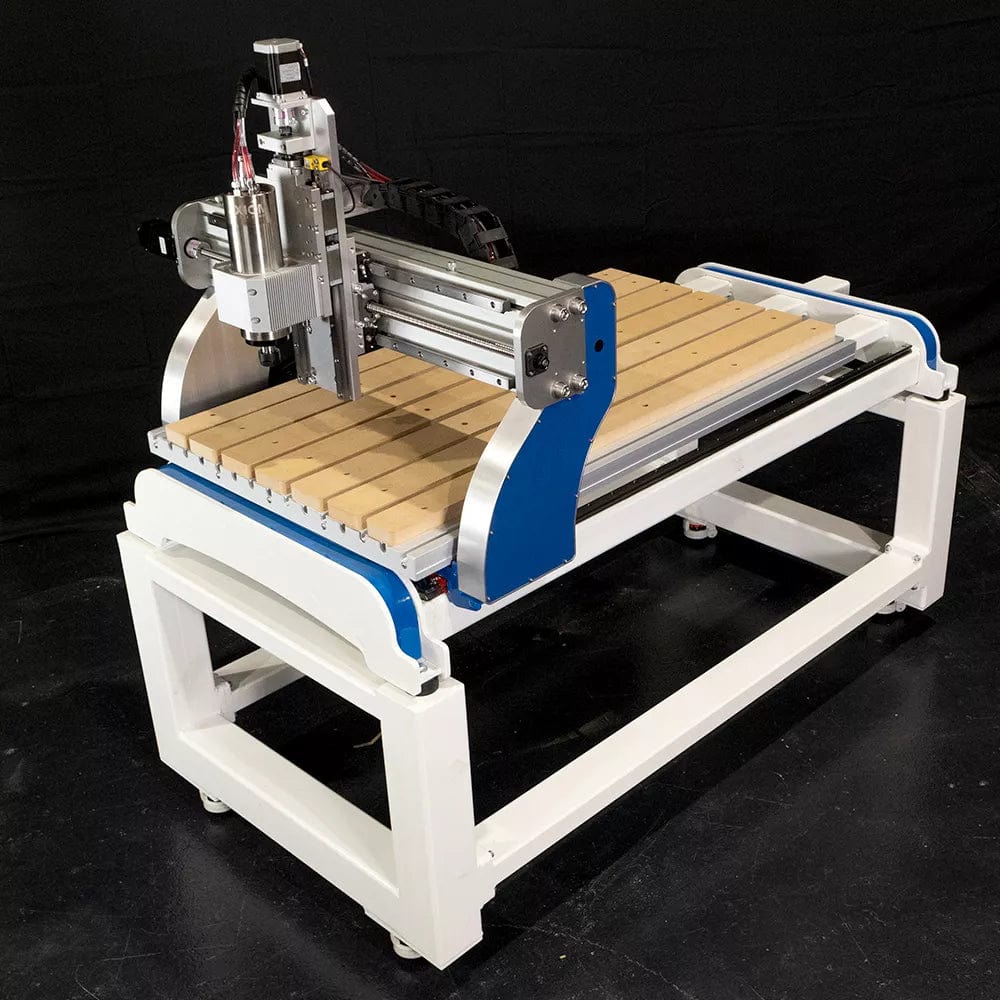

    EXECUTIVE SERIES - CNC 8 - 3HP SPINDLE - 2' X 4' - 220V - COMPLETE BUNDLE

    A powerful CNC Machine bundle that comes complete with everything you need to get up and running, including training and onboarding a real business in a box solution with ease of access, efficiency and functionality in mind.



    EXECUTIVE SERIES - CNC 8 - 3HP SPINDLE - 2' X 4' - 220V - COMPLETE BUNDLE Features

    • Easy to Assemble CNC Machine
      This CNC machine is very intuitive and easy to assemble, designed with comfort and ease of use to make sure you have maximum uptime out of the box.

    • UCCNC Software
      Comes complete with Touch Screen Support, Real Time Control , 3D Feedback During Cuts , Reads G-Code and you can  Control Everything Straight From Your PC

    • Full License of Vectric Pro Software

      Vetric VCarve Pro gives you the power to produce complex 2D patterns with profile, pocket, drill and inlay toolpaths, plus gives you the ability to create designs with v-carving textures as well as import and machine unlimited Vectric 3D clipart or single model files along with unlimited job and toolpath size, true shape nesting & job set-up sheets, ideally suited to a production environment.

    • Dust Shoe specifically designed for your machine
      The Dust shoe provides an effective dust extraction solution for your new i2R CNC router and tailored specifically for your machine.

    • 1 on 1 Software Training Session ($497 Value)
      The I2RCNC Virtual Training Session is a one-hour 1 on 1 Virtual session.
      In this session, we train you on your machine. This Session is perfect once your machine is set up and ready to use.
      In this training, You will go through CNC Software and Functionality, Machine Buttons and Functionality , Tools and Machine Features ,We even connect remotely to your computer if needed to get you up and running
      After this session, you'll have a solid foundation to start creating your own designs.

    • 1 on 1 Onboarding Call ($197 Value)
      The I2RCNC Virtual Onboarding Session is a one-hour 1 on 1 Virtual session.
      In this session, You will be in contact with an i2r Expert over everything that was received on your new machine. You will go over each item and show you how to properly set up your machine to start cutting right away.

    • Lifetime Customer Service
      i2rCNC Experts are readily available for you and will have your back every time you need them for greater peace of mind and maximum uptime if you ever incur a problem.

    • Remote Login Support
      i2r Experts can provide Remote Login support for any assistance cast necessary.














    I2RCNC E8 (2X4)

    TECHNICAL SPECIFICATIONS



    TRAVEL:

    I2RCNC E8 (2X4)

    • X axis: 610mm (24″) Nema 23 NM High Torque Steppers
    • Y axis: 1220mm (48″) Nema 34 NM High Torque Steppers
    • Z axis: 200mm (7.87″) Nema 23 2.5NM high torque steppers

    TABLE WORK AREA::

    • i2R Exec 8: (24″ x 48″)

    SPINDLE:

    • Spindle Speed : 0~24000rpm
    • Standard: 2.2kW ER20 water cooled spindle as standard
    • Optional: 2.2kW ER25 collet Italian Tekno air cooled spindle with ER25 collet system | please contact us

    MAXIMUM FEED RATE:

      • X-, Y-, and Z-Axis: 400 in./min

    We will provide test report upon completion ( Machine is tested until stall)

    POWER REQUIRED:

    • 230v 1phase – main machine will run off a 10A single phase supply.

    • Vacuum pump supply will be separate – see vacuum.

    MACHINE SPECIFICATIONS:

    i2R-Exec 8

    • Floor space requirement:
    • Machine Weight
    • Gantry Clearance (standard): 200mm clearance – & repositionable Z height

    LINEAR MOTION COMPONENTS:

      • Profiled linear rail system size – a massive 20mm in X, Y, Z | 4 full carriages per axis

      • Precision BallScrew X/Y/Z

      • BallScrew Diameter 16mm

    Exec 8: One 16mm ball screw on each axis (X, Y, Z)

    MACHINE CONSTRUCTION:

    • Machine Base: All Welded Steel Frame

    • Gantry Bridge: 160x80mm heavy duty Maytech Alloy Bridge

    • Gantry Supports: FEA designed webbed upstand construction

    RESOLUTIONS & ACCURACY:

    • Positional Accuracy +/- 0.01mm (.003”)

    CONTROLLER:

      • High voltage stepper controller system with full UCCNC control.

    ACCESSORIES (INCLUDED):

    • Tool Touch Off

    • MDF Spoilboard

    • Wrenches

    • Ethernet Cable

    ACCESSORIES (OPTIONAL):

    • VAC Table

    • VAC Pump As standard 1 x 2.2kW side channel blower

    • VAC Table upgrade to factory installed grid square suction table with access to the T-slots maintained every 3-400mms) | contact us

    • 2.2kW ER25 collet Tekno air cooled spindle with ER25 collet system | contact us

    AVAILABLE EXPANSION PORTS:

    • Compatible with air solenoid for coolant

    • Compatible with fixed touch off system

    • Compatible with OPT laser system
