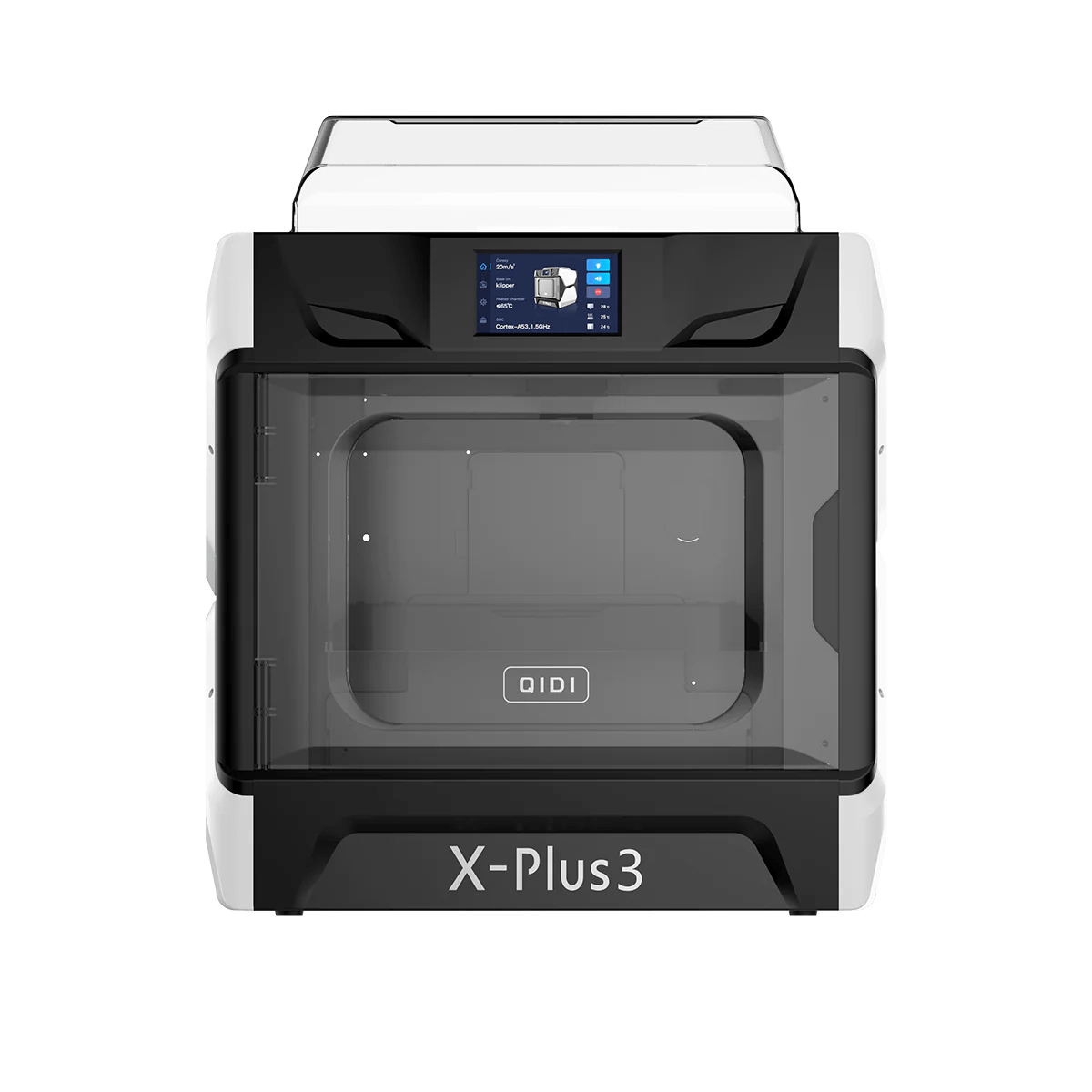

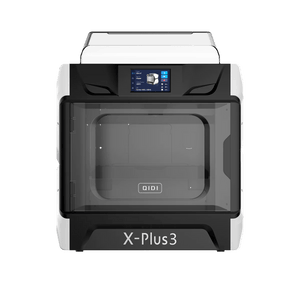

Qidi Tech X-Plus 3 3D Printer

  • Sale price
    $589.00
    Regular price
    Sold out
    Unit price
    per
    5% OFF | FREE Shipping | Coupon Code:3DPSALE | Ends:

    Availability:

    Estimated Arrival: Between Jun 23 and Jun 29. *ETA to USA Only

    Shipping & Returns: Free Shipping U.S.A wide for All Orders Over $99!

    Why Buy From 3D Printernational

    QIDI TECH X-PLUS 3 3D Printer Large Size 3D Printer Fast Print High Precision Industrial Grade Fully Automatic Leveling Heated Chamber Large Print Size

    Introducing the Fully Upgraded X-Plus 3: a game-changing 3D printer designed for commercial use. This machine boasts powerful industrial features and high printing speed while remaining affordable.

    QIDI TECH X-PLUS 3 3D Printer Product Features

    • Fully Upgraded Structure and Speed
      Qidi TECH X-Plus 3 is a revolutionary FFF/FDM big 3d printer designed for commercial use.
      Featuring  Klipper firmware and CoreXY structure, this printer can significantly reduce printing time by up to 80%. It achieves a remarkable print speed of 600mm/s and an acceleration of 20000mm/s². Moreover, the software and firmware are open source for 3D Printing enthusiasts

    • Multi-Material Printing
      The X Plus 3D Printer offers versatility with its two sets of nozzles, one in copper alloy and the other in hardened steel.
      Equipped with a direct drive extruder which allows it to effortlessly handle various filament materials like TPU, ABS, ASA, PETG, PA, PC, GF, CF, and PLA, ensuring versatility in all project


    • Independent Chamber Heating System
      The printer comes with an independent chamber heating system that can heat up to 60℃. Its internal structure and hardware are built to withstand high temperatures, and it includes a drying box. QIDI TECH also developed high-speed filaments like ABS Rapido, PETG-Tough, and ABS-GF25 that provide high quality industrial results when printed with QIDI TECH.

    • Improved Speed and Accuracy
      We've redesigned the hotend cooling system to enhance speed and accuracy. With a gear ratio of 9.5:1 and  3x extrusion flow, this printer offers a faster printing experience. Its lightweight design, all-metal frame, and features like Pressure Advance and auto-leveling contribute to excellent print resolution. It's powered by a 64-bit Processor with a Cortex-A53 core, running at 1.5GHz, and equipped with 8G-EMMC and 1G DDR3 for performance.

    • QIDI TECH Service
      QIDI TECH are committed to making reliable, high performance 3D printers.
      X-Plus 3 is suitable for professional users as well as novice users. No assembly, out of the box. All Qidi Tech printers come with 1 year manufacturer warranty and lifetime technical support from QIDI TECH.



















    Machine Name



    X-Plus3


    Technology

    FDM

    Build Volume

    (W×D×H)


    280*280*270mm


    Dimensions

    (W×D×H)


    511*527*529mm


    Net weight

    (kg)


    24.3


    Printing Speed

    ≤600mm/s


    Extruder Flow:

    35mm³/s

    @PLA Matte(Model:150*150mm single wall; Material: PLA Rapido Matte;Temperature: 240℃)


    Extruder Temp

    ≤350°C


    Hotend (Included)

    Copper alloy nozzle hotend

    For Common materials


    Hardened steel nozzle hotend

    For Abrasive materials

    Auxiliary Part Cooling Fan



    Chamber Temperature Control


    65°C Independent Chamber Heating


    Chamber Circulation Fan

    With Activated carbon air filter


    Chamber Circulation Fan


    Screen

    5.0 inch


    800*480 touch screen


    Seal print

    Dryer Box + Desiccant


    Connection Options

    150M 2.4G Wi-Fi

    USB Flash Drive/Ethernet Cable


    Rated Power


    800W


    Recommended Filament

    PAHT-CF,PET-CF,PA12-CF


    Compatible filament

    PLA, ABS, ASA, PETG, TPU, PC, UltraPA, Nylon, etc.


    Structure

    CoreXY

    Z Axis:

    Double Z axis

    X axis

    High-grade hardness steel linear hollow optical axis


    Firmware:

    Klipper

    Printing Acceleration:

    20000mm/s²

    Printing Accuracy:

    ±0.1 mm

    Filament diameter:

    1.75mm

    Bed Leveling:

    Automatic Leveling

    Extruder transmission ratio

    9.5:1

    Hot end:

    Ceramic Heating Core

    Extruder:

    High-flow Direct Drive Extruder

    Nozzle diameter:

    0.4mm (0.2,0.6,0.8mm Optional)

    Hot bed temperature:

    ≤120℃

    Printing Plate:

    Double-Sided Flexible Magnetic HF Plate

    Filament Detection:

    Yes

    Resonance Compensation:

    Yes

    Pressure Advance:

    Yes

    Voltage:

    100-240VAC, 50/60Hz

    Main Processor:

    Cortex-A53,64-bit Processor

    1.5Ghz,8G-EMMC,1G DDR3

    Slicer:

    QIDI Print and other third-party software, such as Ultimaker Cura, Simplify3D, PrusaSlicer, etc.

    Operating System:

    Windows, MacOS, Linux

    Assembled

    Assembled and First Print within 10 minutes
