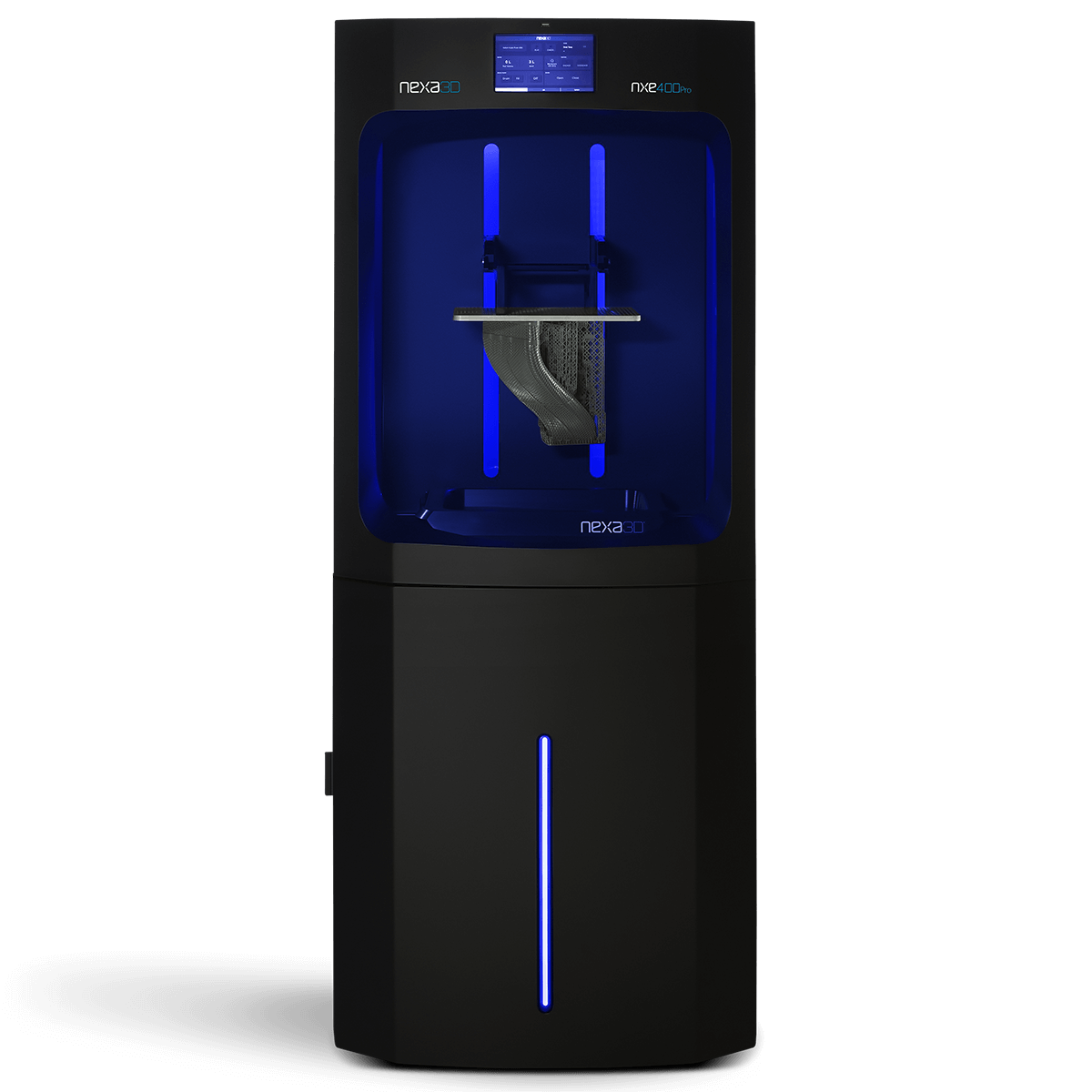

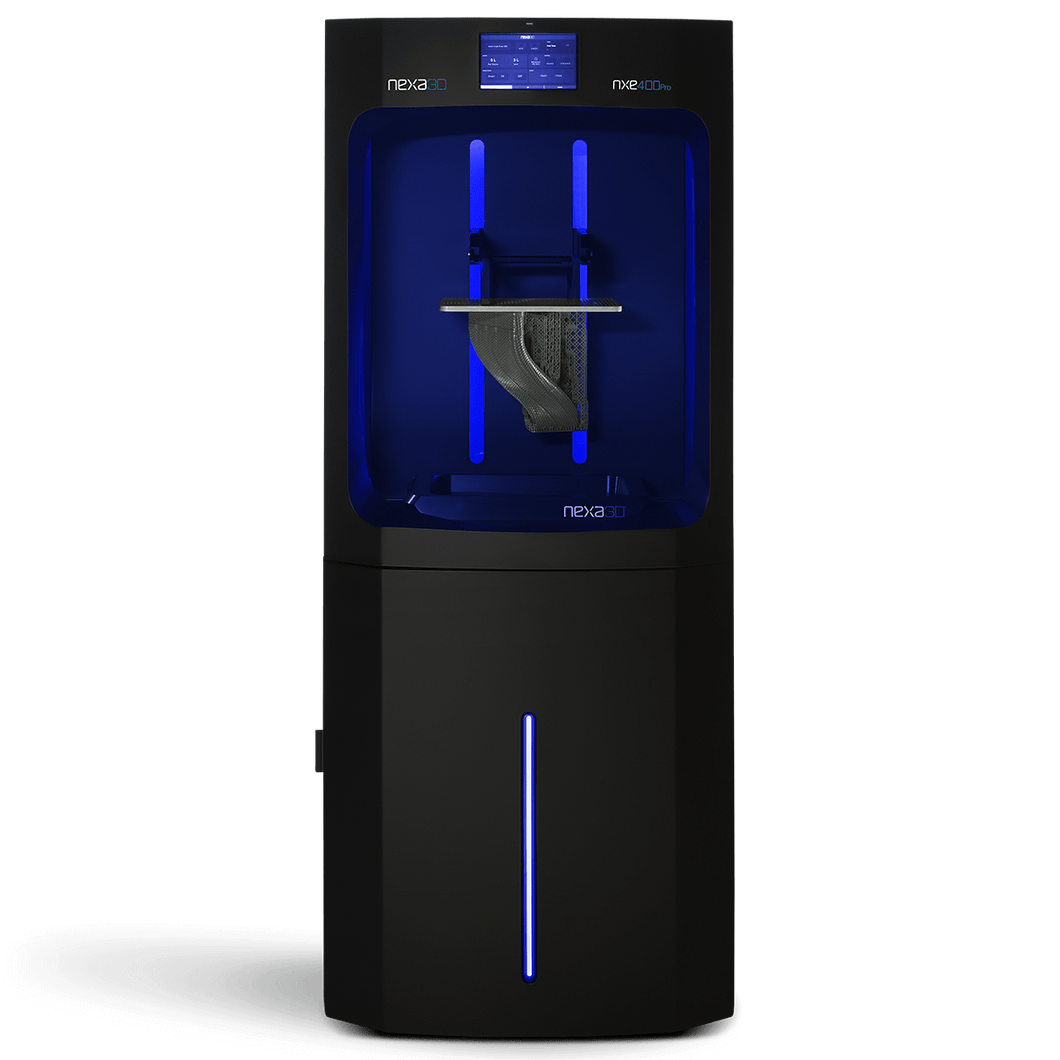

NEXA3D NXE 400 Pro 3D Printer

  • Sale price
    $62,895.00
    Regular price
    $64,999.00 You save 3%
    Unit price
    per
    5% OFF | FREE Shipping | Coupon Code:3DPSALE | Ends:

    Availability:

    Estimated Arrival: Between Dec 18 and Dec 24. *ETA to USA Only

    Shipping & Returns: Free Shipping U.S.A wide for All Orders Over $99!

    Why Buy From 3D Printernational

    NXE 400 3D Printer is Breaking Additive Industry Productivity Performance and Cost Barriers

    NXE 400 3D printer delivers best in breed print size, volume and speed at the lowest cost of ownership, making it ideal for series production and same day on-demand parts and prototypes.

    NEXA3D NXE 400 Product Features

    NXE 400 With an unprecedented 16L build volume measuring 10.8 in x 6.3 in x 15.7 in (27.5 cm x 15.5 cm x 40 cm), intelligent optimization, and Nexa3D’s revolutionary patented LSPc technology, the NXE 400 is the perfect printer for any application.

    • 2.5x Larger Build Volume
      The NXE 400 features more than double the build volume compared to currently available technologies, allowing for much larger parts, higher part throughput, and ultimately lower part cost, all with the higher-resolution pixels (75 µm) and isotropic prints.

    • Manufacturing Ready Modular Design
      In addition to our highly reliable LSPc technology, the NXE 400 is crafted to be completely modular in design for easily interchangeable parts and technology upgrades eliminating hardware obsolescence.

    • Next-Gen Software & Predictive Service
      Nexa3D’s internally developed intelligent software connects our hardware and materials together into a powerful, user friendly system while providing a new era of predictive and prescriptive service. It’s as simple as pressing CRTL+P.

    • Maximize Part Quality and Yield
      The NXE 400 is the next scalable manufacturing solution with additional washing and curing units capable of handling even the largest 16L parts on a single tray making the NXE 400 the most advanced printing solution in its class. The washing and curing units are also capable of handling both single large prints and a combination of smaller parts with multiple trays to create finished parts in a matter of minutes in what would normally take hours with today’s available technologies reducing labor costs and post processing times.

    • Smart and Connected
      Our software tools, include validated workflows that are coded into our digital thread and include intuitively guided print prep and execution system. Machine learning and vision provide adaptive print process and real-time monitoring for optimal yield and quality. Our validated workflows include material and geometry specific prescribed wash and cure cycles







    NEXA3D NXE 400 3D Printer Product Specifications

    Build Volume (xyz)

    275 x 155 x 400mm (10.8 x 6.1 x 15.7 inch)

    Pixel Pitch

    76.5 µm (0.0030 in)

    Build Materials

    UV Curable Plastics: xGPP-Blue, xGPP-Transparent, xGPP-Grey, xABS-HT-Orange, 3843-ABS-Black, xCE-Black, xMED, xCAST


    Max Resolution

    4K (3840 x 2160)

    Wavelength

    405 nm

    Material Packaging


    5kg jerry can


    Operating Environment

    Air Temperature

    20-25˚C (60-80˚F)

    Electrical

    NA Version : 100-120 VAC, 50/60 Hz, Single Phase, 8A (NEMA 15-5R) EU Version: 210-230 VAC, 50/60 Hz, Single Phase, 4A (CEE 7/7)

    Humidity

    RH below 70%



    Dimensions (WxDxH)

    3D Printer crated

    990 x 990 x 1905mm (39 x 39 x 75 inch)

    3D Printer uncrated

    710 x 710 x 1675 mm (28 x 28 x 66 inch)



    Weight

    3D Printer crated

    250 kg (550lb)

    3D Printer uncrated

    160kg (350lb)



    More Information

    Materialise MagicsPrint for Nexa3D Software

    Full featured toolset including auto aorientation and nesting, auto support generation, mesh repair wizard, and part editing

    NexaX v1 Software

    Easy build processing and Remote Printer Management: submission and queues, job statisitics.

    Connectivity

    GigaBit Ethernet RJ-45 & WiFi Interface

    Client Hardware Recommendation

    ‘- 3 GHz multiple core processor with 16+ GB RAM - NVIDIA GTX 1060 or AMD Radeon RX 480 or better graphics with 4+ GB RAM - 3 GB available HDD space, additional 10GB for files / cache


    Client Operating System

    Windows 10, 64bit

    Input Data File Formats Supported

    .stl, .3mf


    Post-Processing

    Ships with basic part finishing tools accessory kit. - Max build requires wash basin & cure chamber with 300 x 180 x 480mm (12 x 7 x 19 in) capacity - Requires UV curing unit capable of > 2mW/ cm2 and 60°C (ideal 20mW/cm2 and up to 120°C)








    Performance Photoplastics

    Properties

    xGPP-Translucent

    xGPP-Gray

    xCE- White

    xCE Black

    3843-ABS-Black

    xMED412

    Viscosity at RT (cps

    1063

    364

    409

    386

    826

    637

    Color

    Clear

    Gray

    White

    Black

    Black

    Clear

    Liquid Density

    1.06

    1.12

    1.12

    1.12

    1.16

    1.06

    Package Size

    5KG

    5KG

    5KG

    5KG

    5KG

    5KG

    Layer Thicknesses

    100µm

    50, 100µm

    100µm ,200µm

    100µm

    100µm

    100µm

    Tensile Strength, Ultimate (MPa) ASTM D638

    60

    30

    80

    69

    60

    38

    Elongation at Break

    5.5%

    4%

    8%

    8%

    47%

    141%

    Flexural Strength (MPa) ASTM D790



    135

    135

    80.6

    37.6

    Flexural Modulus (MPa)



    3250

    3250

    1860

    1022

    Hardness (shore D) ASTM D2240

    88

    84

    90

    89

    86

    74.7

    Impact, Notched Izod (J/m) ASTM D256



    20

    20

    53.8

    42.6

    Heat Deflection Temperature @ 0.45 Mpa ASTM D648

    61°C

    59°C

    120°C

    120°C

    80°C

    40°C

    Glass Transition (Tg)


    93°C

    129°C

    128°C



    Water adsorption

    0.4%


    0.38%

    0.63%

    2.35%

    0.36

    Description

    Prototyping Material

    Aestetic Models

    High Temperature & Strength

    High Temperature & Strength

    High Toughness

    Medical Grade
