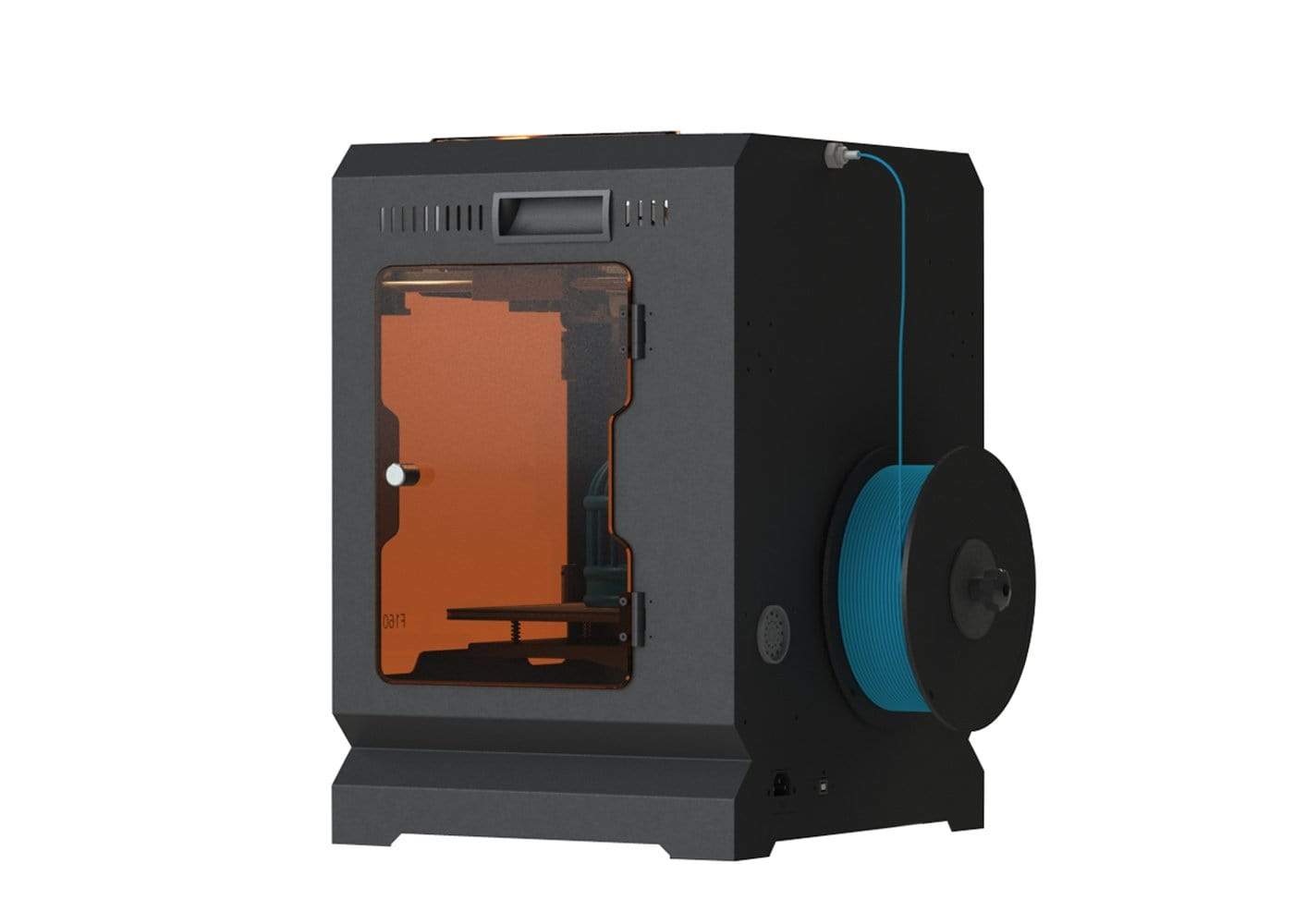

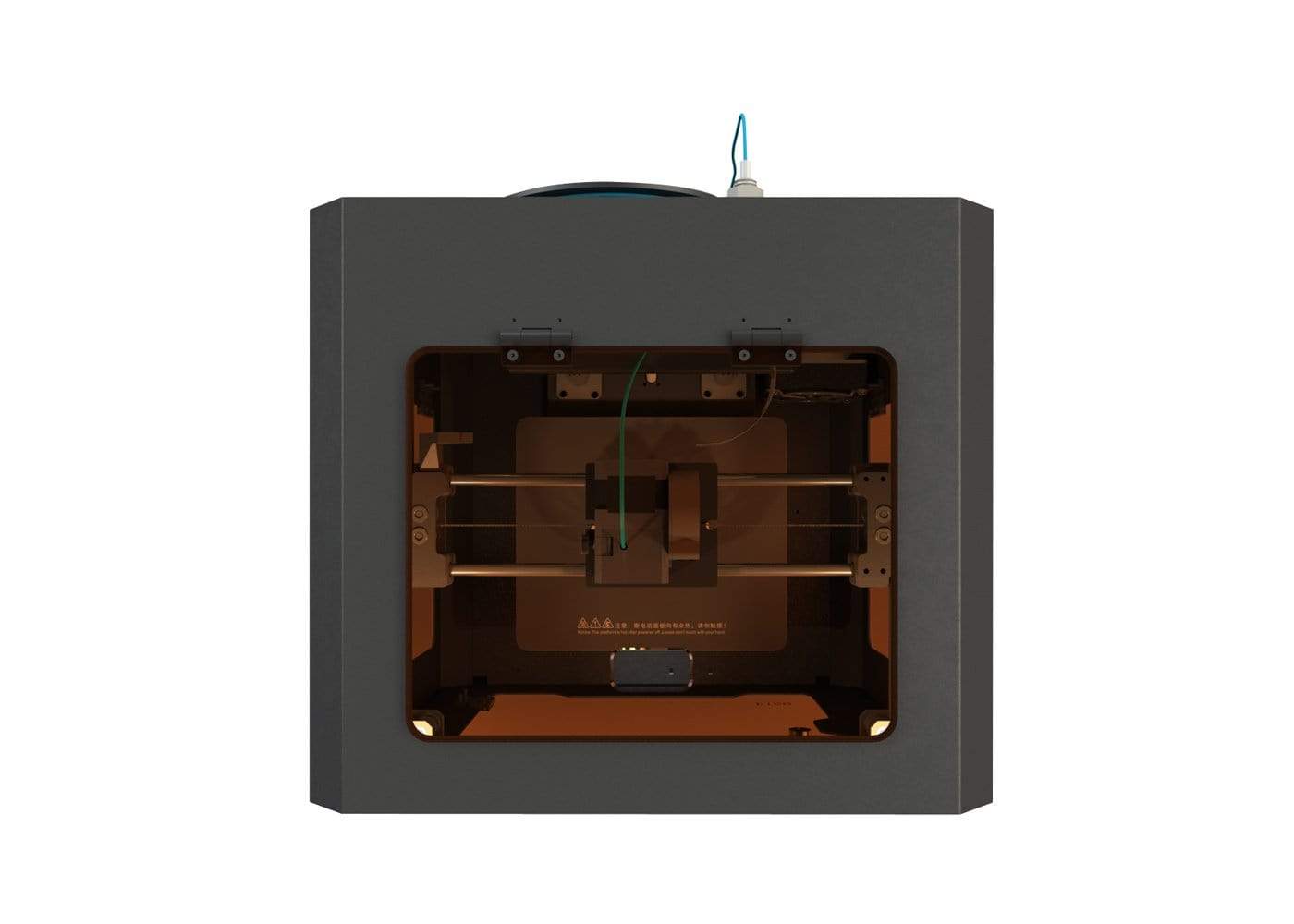

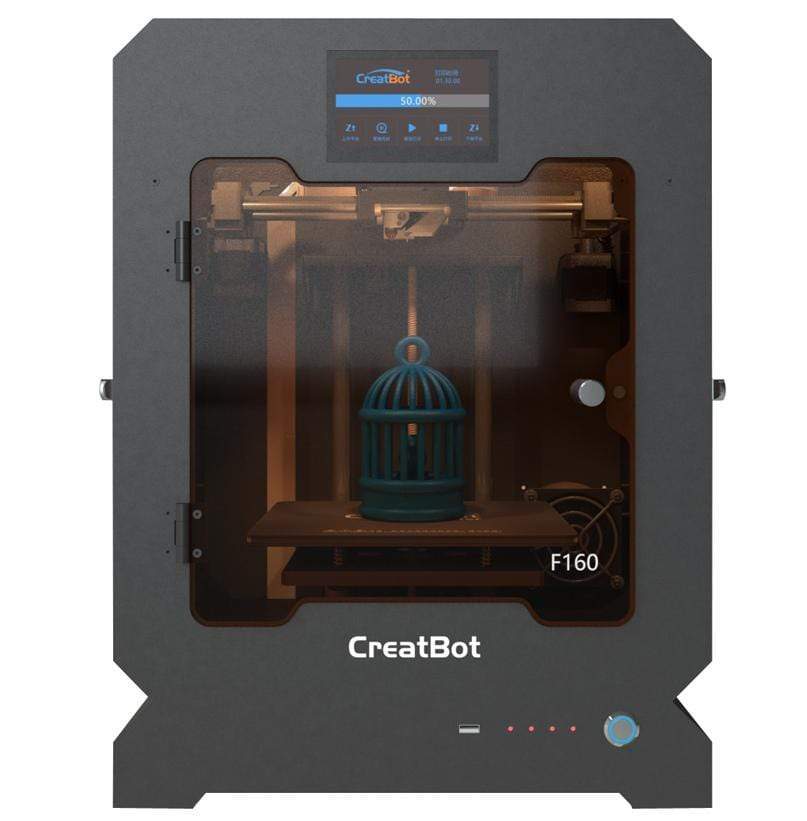

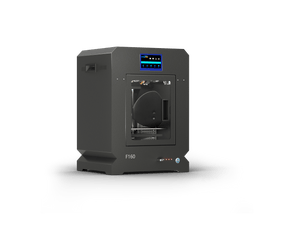

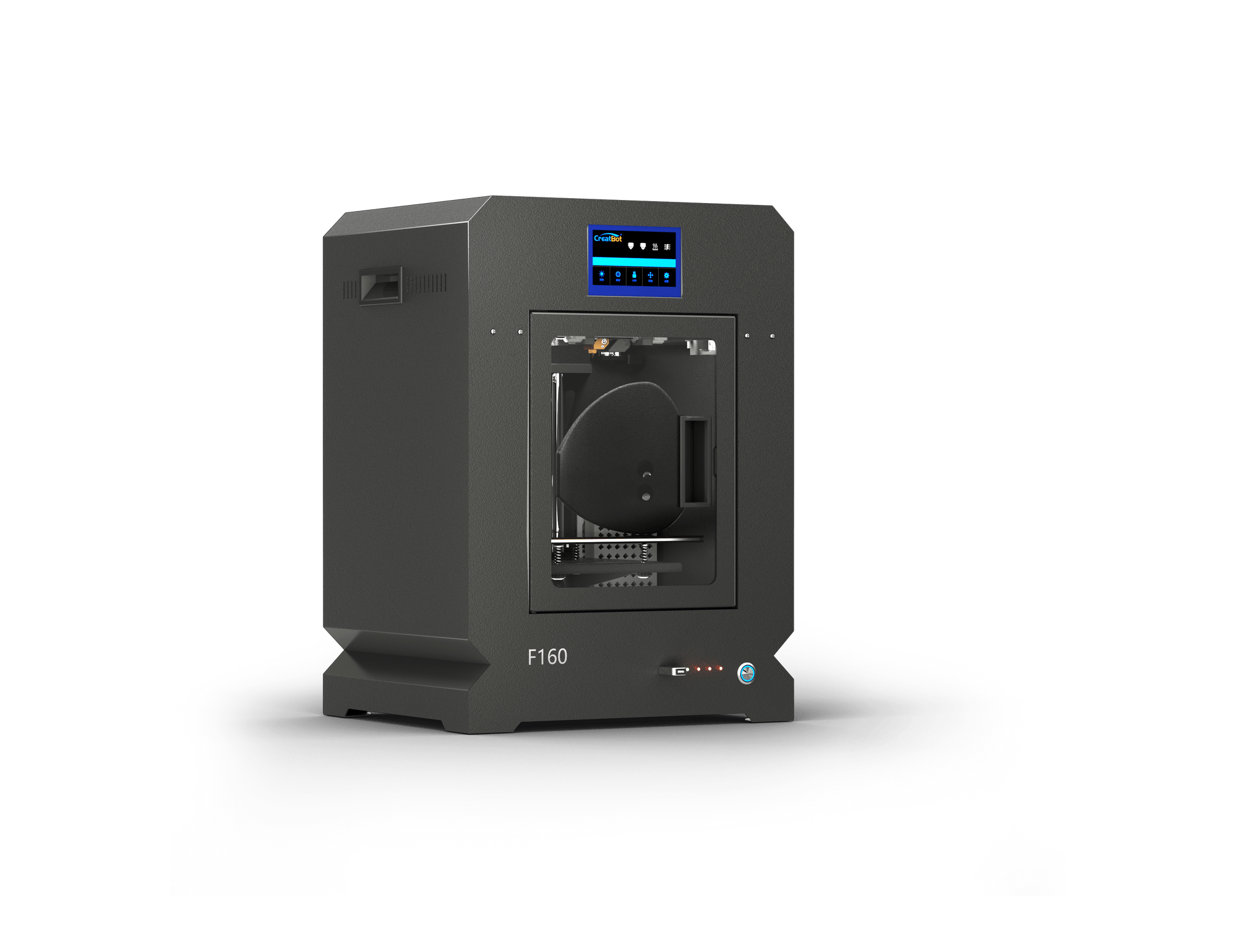

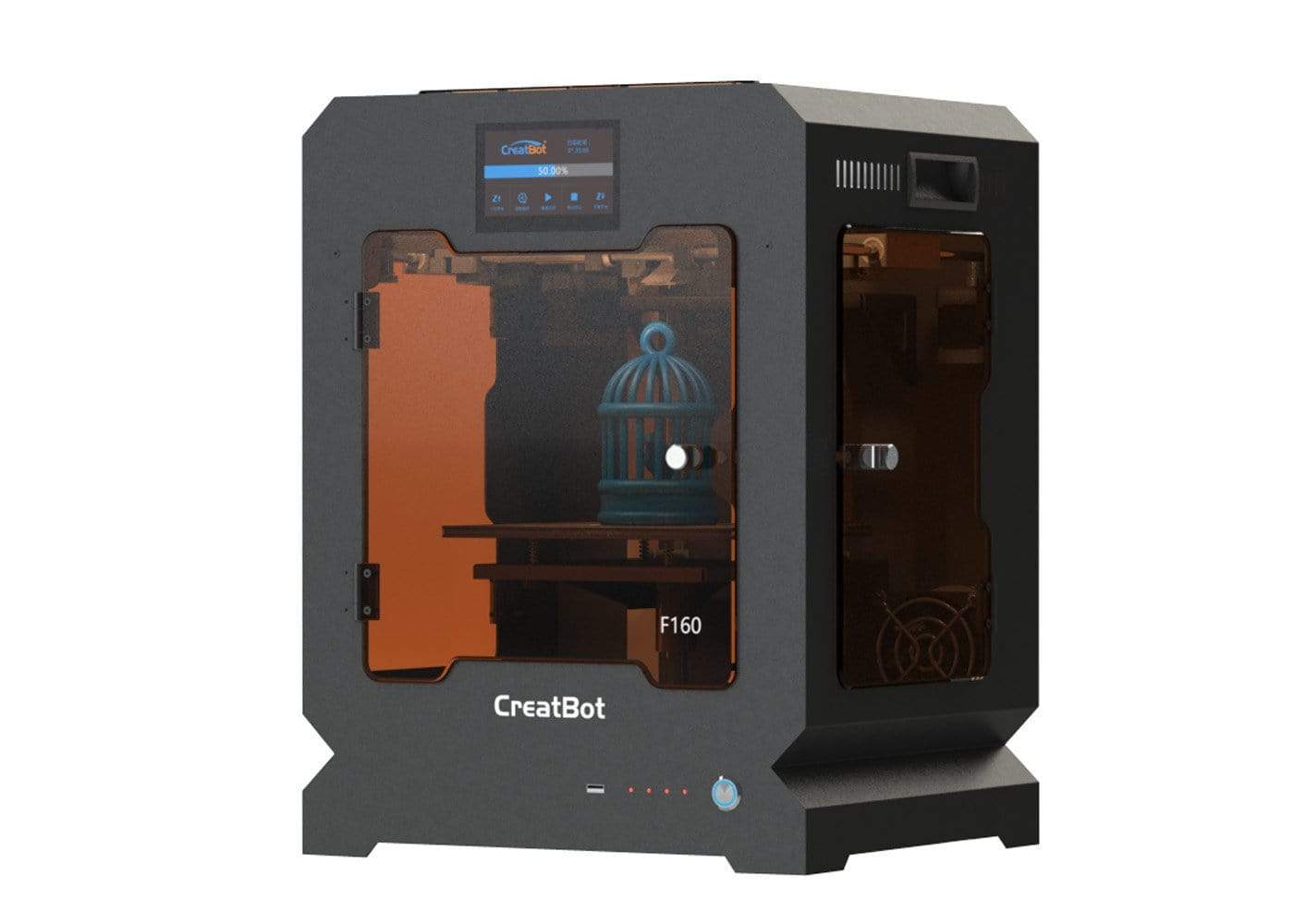

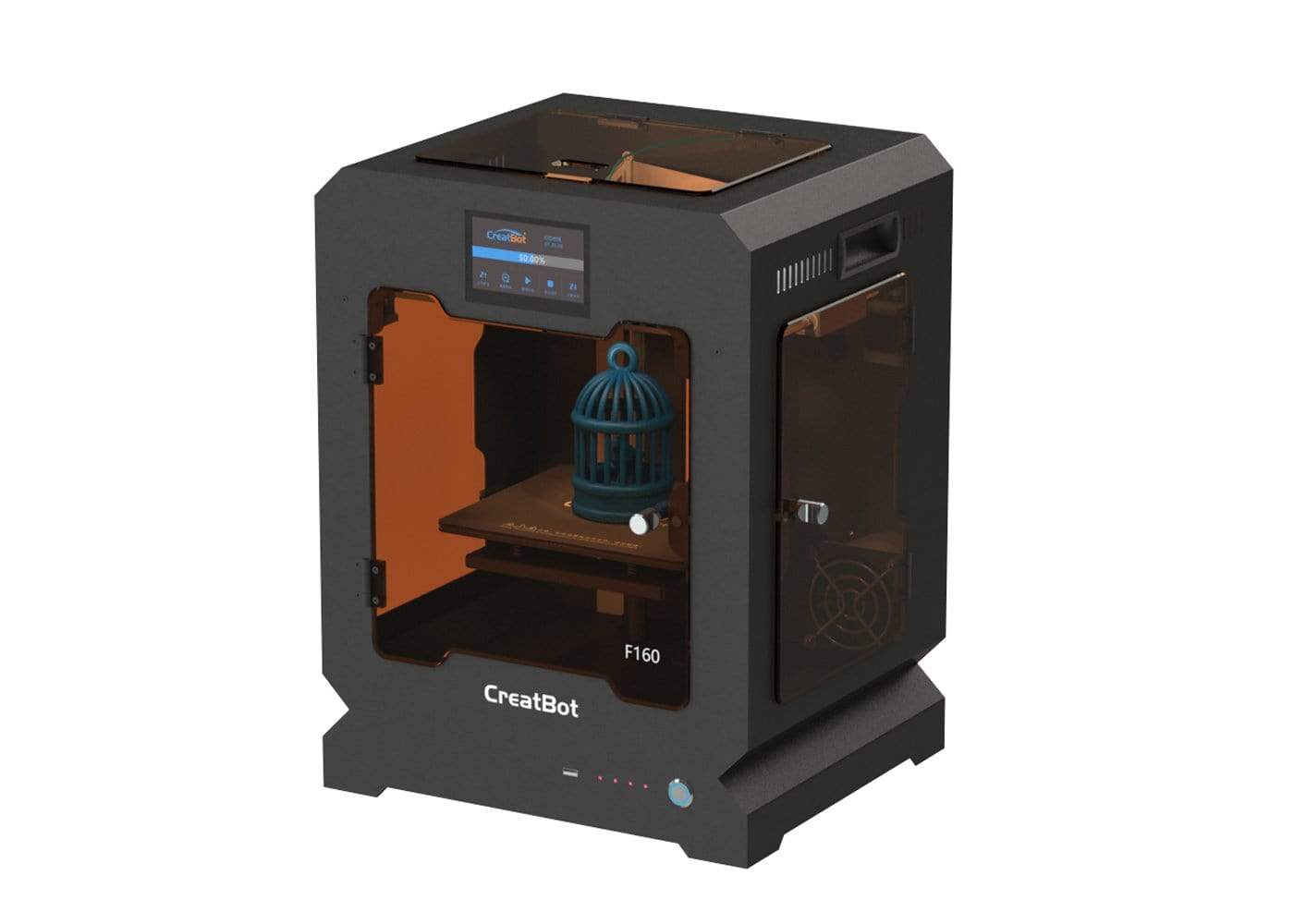

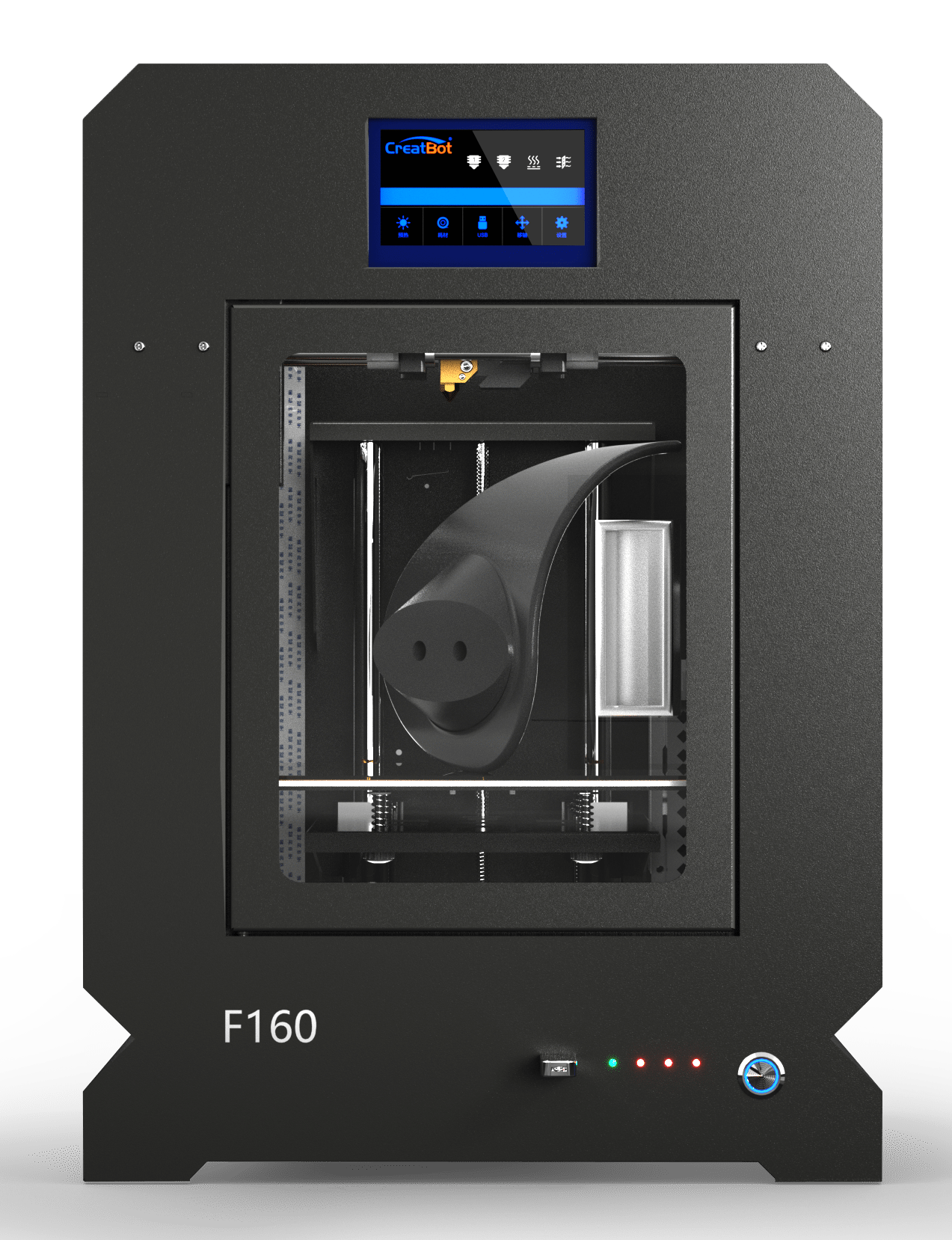

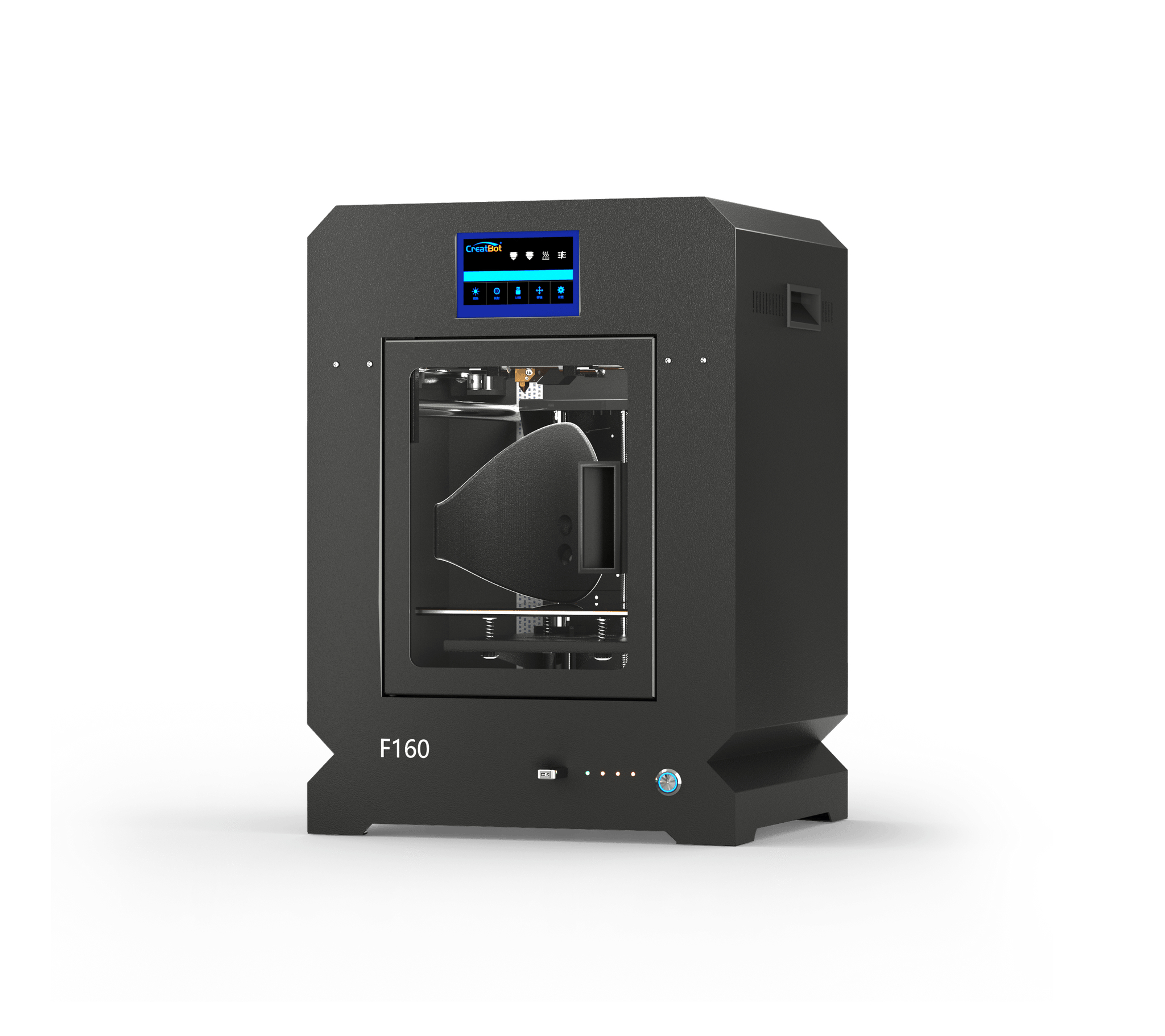

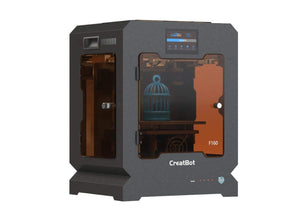

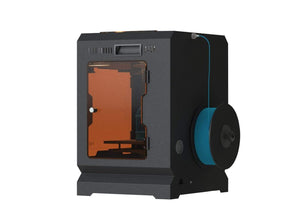

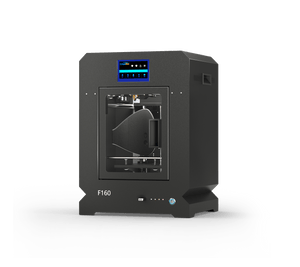

CreatBot F160/F160-PEEK 3D Printer Single Extruder Large Build Size High Temp Hotend

  • Vendor
    CREATBOT
    Sale price
    $1,149.00
    Regular price
    $1,799.00 You save 36%
    Unit price
    per
    5% off and Free Shipping | Coupon Code: 3DPSALE | Ends:

    Availability:

    Estimated Arrival: Between Oct 22 and Oct 28. *ETA to USA Only

    Shipping & Returns: Free Shipping U.S.A wide for All Orders Over $199!

    Why Buy From 3D Printernational
    • CREATBOT F160 3D PRINTER WITH OPTIONAL PEEK FILAMENT SUPPORT

      CreatBot F160 / F160 - PEEK  is a desktop 3D printer designed for high reliability and economical 3D printing of high-performance functional materials while being accessible to the small professional or hobbyist. focusing on high-performance materials such as PEEK, PEKK, PEI (Ultem). It is

      CREATBOT F160 / F160 - PEEK was launched in 2018 and is constantly researched, developed and updated to supply the highest possible quality while remaining affordable. CreatBot has more than three years of PEEK 3D printer manufacturing experience and has a wealth of 3D printing experience and material identification experience for various high-performance materials such as PEEK, Ultem.

      PRODUCT FEATURES

      HIGH PRINT TEMPERATURE UP TO 420°C-

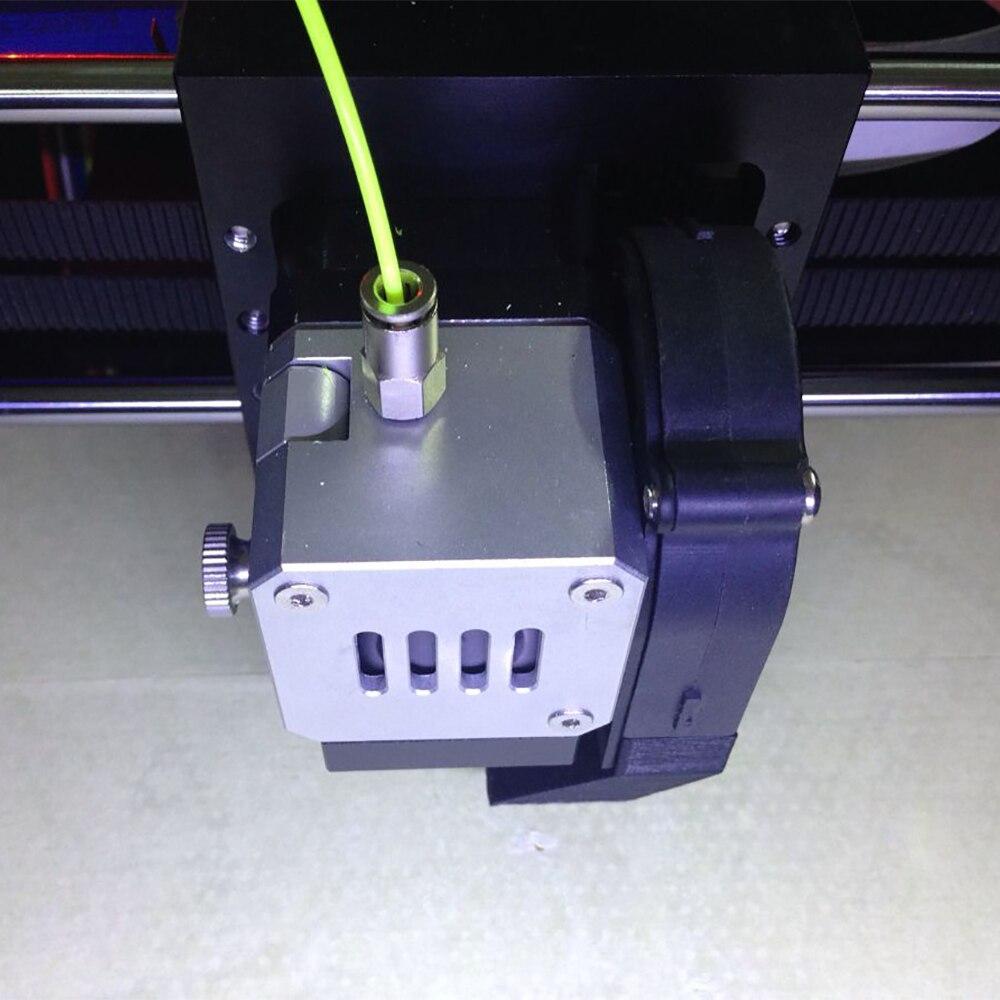

      Supports 420°C Hot-End CreatBot are the first to publish a high temperature 420°C high-temperature nozzle to the 3d printer market. These nozzles allow it to print with a variety of filaments. The nozzle height can also be micro-adjusted.
      (F160 STANDARD VERSION - 260°C / F160-PEEK VERSION - 420°C)
      HIGH PRECISION PRINTING-
      CreatBot's exclusive research and development of CreatBot F160 / F160-PEEK 3D Printer, Extruder feeding systems, and guide rails allow high-speed printing, very high accuracy that reaches highs of 0.04mm, it allows to extrude filament steadily and without blockage while printing at 120MM/S.
      STABILITY
      The whole-steel body does not only ensure stability when printing but also greatly extends the usage period. The optimization and construction of the overall structure ensure a sustainable and efficient operation. The first batch of CreatBot 3D Printers has been working for 9 years and more than 30000 hours.
      POWER OUTAGE RESTORE & FILAMENT DETECTION-
      The printer will automatically memorize the current position and save the print data, lower the working platform and withdraw filament if the power suddenly turns off.
      It will continue to print from the last stopped point after powering on.The printer will avoid invalid printing by stopping print and warning when filament runs out.

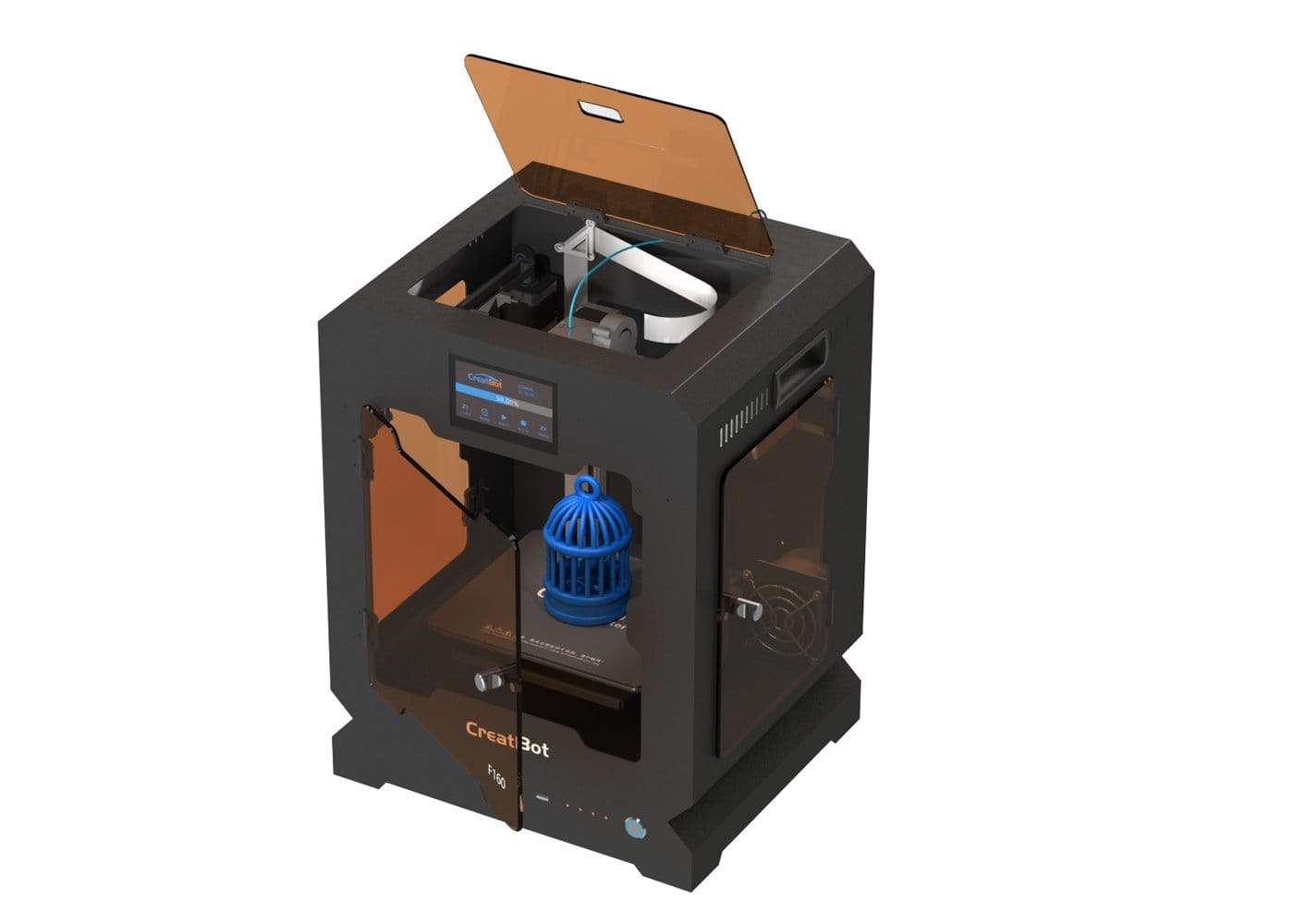

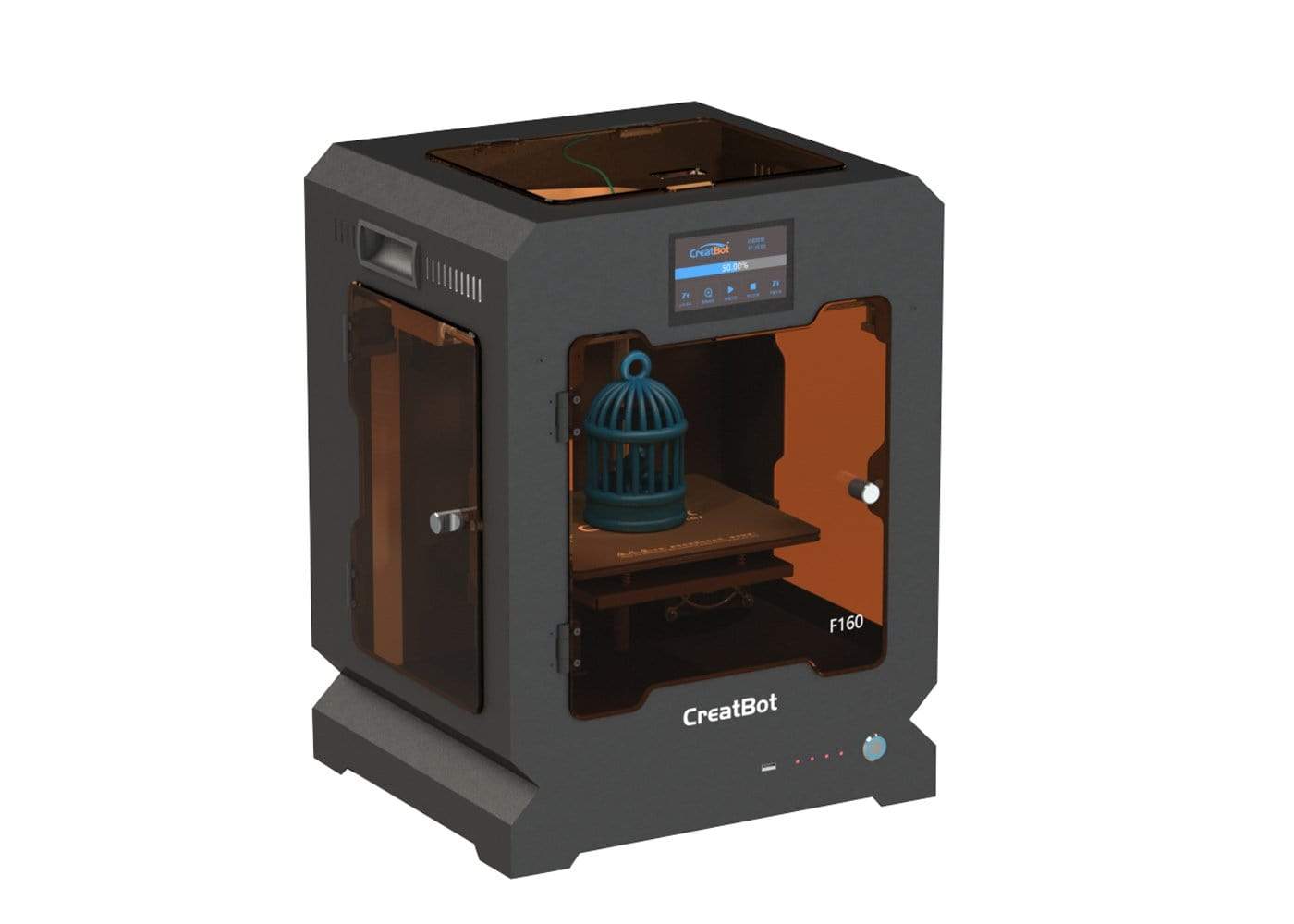

      FULLY ENCLOSED HIGH TEMP CHAMBER
      A fully Enclosed Chamber blocks all external interference and reduces noise.
      The Hot Chamber can provide constant room temperature as well so the model won’t deform when printing. Acrylic Doors can be opened to remove prints conveniently.
      BUILD-TAK PLATFORM
      The hotbed is made of heatable aluminum PCB, which can be heated up to 150°C fast. The platform is attached with 3d printing build task stickers. The printed object can be placed on the build task tightly and won’t get deformed.
      INTUITIVE TOUCH SCREEN
      The printer comes with an all-English-menu touch screen which is easy to operate and very user-friendly. With Many one-key Shortcuts to warm, one key to print as p-4, rounded-lg bg-light border, and many other shortcut keys.



      CreatBot_F160_PEEK_3D_Printer_Description



      • Notice: The customs fee of your country may apply. The buyer is responsible for all import taxes, duties, fees, and tariffs.

      • Lead Time (Processing/Shipping Handling Time): 8-12 Business Days.

      • All pictures shown are for illustration purposes only. The actual product may vary due to product enhancement.


    • Product Condition
      Item Condition New
      Manufacturer Warranty 12 Months
      Printing Specifications
      Print size ( X Y Z ) 160*160*200mm (F160)
      Print Speed 30 to 200 mm/sec
      Layer Resolution 0.01mm
      Print Precision (Layer Thickness) 0.04mm
      Filament Diameter 1.75mm
      Nozzle Diameter 0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm)
      Filament Compatibility PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA, PEEK, etc. (for PEEK Version)
      Mechanical Specifications
      Chassis Power-Coated Steel, Aluminum Casting for Motion Components, POM
      No.of Extruders One
      Print Plate (Build Platform) Heatable Aluminium PCB with BuildTak
      Software Specifications
      3D Printing Software CreatWare Multi-language
      Supported File Formats STL, OBJ, AMF
      Operating System Windows
      Temperature Specifications
      Ambient Operating Temperature 15-32 ℃
      Extruder Temperature Max 260°C (for Standard Version);  Max 420°C (for PEEK Version);
      Max. Bed Temperature 150 ℃
      Max. Chamber Temperature 70 ℃ (F160-PEEK only)
      Electrical Specifications
      Power Requirements
      100V-110V or 200V-240V / 50-60Hz (Depending on your country's default voltage)
      Max. Power 340W
      Connectivity (Interface) USB, SD card Supported
      Electronics Specifications
      Electronics (Motherboard) ATmega 2560
      Shipping specifications
      Machine weight 20 kg
      Shipping box weight 25 kg
      Machine Dimensions 370*320*490mm
      Shipping box dimensions 470*420*600mm
      Shipping Location China
      Lead Time (Processing/Handling Time) 8-12 business days

      Technical Specs

      Printing
      Print Technology Fused Deposition Modeling (FDM)
      Build Volume 160*160*200 mm
      Number of Nozzles Single
      Accuracy 0.04 mm
      Layer Resolution 0.01 mm
      Filament Diameter 1.75 mm
      Filament Compatibility PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA,PEEK, ULTEM (F160-PEEK) etc.
      Nozzle Diameter 0.4 mm(0.3 0.5 0.6 0.8 1.0 mm)
      Print File Type STL, OBJ, AMF, Gcode
      Electrical
      Power Requirements 100V-110V or 200V-240V / 50-60Hz
      (Depending on your country's default voltage)
      Max. Power 340 W
      Screen 4.3" Touch Screen with Multi-language
      Control Chip ATmega 2560
      Storage Media U Disk
      Connectivity USB
      Mechanical
      Construction Power-Coated Steel, Aluminum Casting for Motion Components, POM etc.
      Build Plate Heatable Aluminum PCB with BuildTak
      Build Plate Leveling Manually
      Extruder Directly Drive
      Stepper Motors 1.8°Step Angle with 1/16 Micro-stepping
      X Y Positioning Precision 12.7 μm
      Z Positioning Precision 1.25 μm
      Speed
      Best Printing speed 70 mm/s
      Max. Printing speed 300 mm/s
      Temperature
      Ambient Operating Temperature 15-32 ℃
      Max. Nozzle Temperature F160: 260 ℃
      F160-PEEK: 420 ℃
      Max. Bed Temperature 150 ℃
      Max. Chamber Temperature 70 ℃ (F160-PEEK)
      Software
      Software Bundle CreatWare, Simplify 3D, Cura, Slice 3r, etc
      Supported File Types STL,OBJ,AMF
      Operating Systems Win7/8/10, MacOS
      Special Function
      Outage Restored Save data when power is off
      Filament Detection Pause printing when filament run out
      Automatic Shut-down Turn off the power automatically when printing is complete
      Size & Weight
      Product Dimensions & Weight 370*320*490 mm 18 kg
      Packing Size & Weight 470*420*600 mm 23 kg


    • Price Guarantee

      We work extremely hard to make sure that we offer the outright finest rates online. If you locate one more online shop that offers a lower cost than us within fourteen days of your purchase date, please let us know and we will restore the difference from your original payment as a store credit.


      Shop with confidence. We want you to know that you are getting the absolute best price for the items you are purchasing. If you find that our very own website has a reduced cost for the same item you have actually purchased within fourteen days of your day of purchase we will restore the difference as a store credit as well.


      To request your store credit simply e-mail us a web link to the same item on our website, or on our rival's website within fourteen days from the date of your order and we will process the credit accordingly.


      Our Price Match Guarantee has a few simple rules:

      • You must purchase the item from our website before requesting your Price Match Guarantee.
      • Promotions such as rebates and "buy one, get one free" offers are not eligible.
      • The item must be in stock on the competitor's website.
      • The competitor must be an online store, they may NOT have a retail location.
      • The website cannot be a discounter or auction website (ie; eBay, overstock, etc..)
      • The competitor must be an Authorized Retailer of the product in question.
      • The Price Match Guarantee includes the item price and the shipping charges, it excludes sales tax.
      • The Price Match Guarantee does NOT include items that are shipped outside of  United States and Canada.

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    T
    T.
    As a technology educator...

    As a technology educator, 3D printing is part of my curriculum, so I need printers on which I can rely. I've had the F160 for a little over a year now, and I have had ZERO issues with this product. It is very easy to use right out of the box, and my student enjoy watching the machine build the objects.I HIGHLY recommend this printer!

    QUESTIONS & ANSWERS

    Ask a Question
    • How to prevent model become warped ?

      Increase hot bed temperature or use Kapton, or change platform adhesion type to Raft, or cover the baffle, or reduce indoor ventilation.

    • Hello, its first time buying 3D printing. I choose this one because I want to print small parts with filaflex and carbon , and this is one I can do both here. Planning purchase Would you tell me more about maintenance about the 3D printer , how long is the life of the product? What files works with and how do you transfer files to it?

      Hello Elena,

      The F-160 PEEK will print any material up to 420C. It's a single extruder printer and can handle industrial-grade materials without any issues. There is no special maintenance required for this 3D printer. It's very modular and comes with high-quality parts. Parts are industry standard size so you can upgrade different parts and elements of the printer, such as nozzles and heat breaks.

      CreatBot has been around since 2013 and has been building quality machines which are still out there for over 5 years. All machines support SLA files, can transfer your GCode files via a USB drive.
