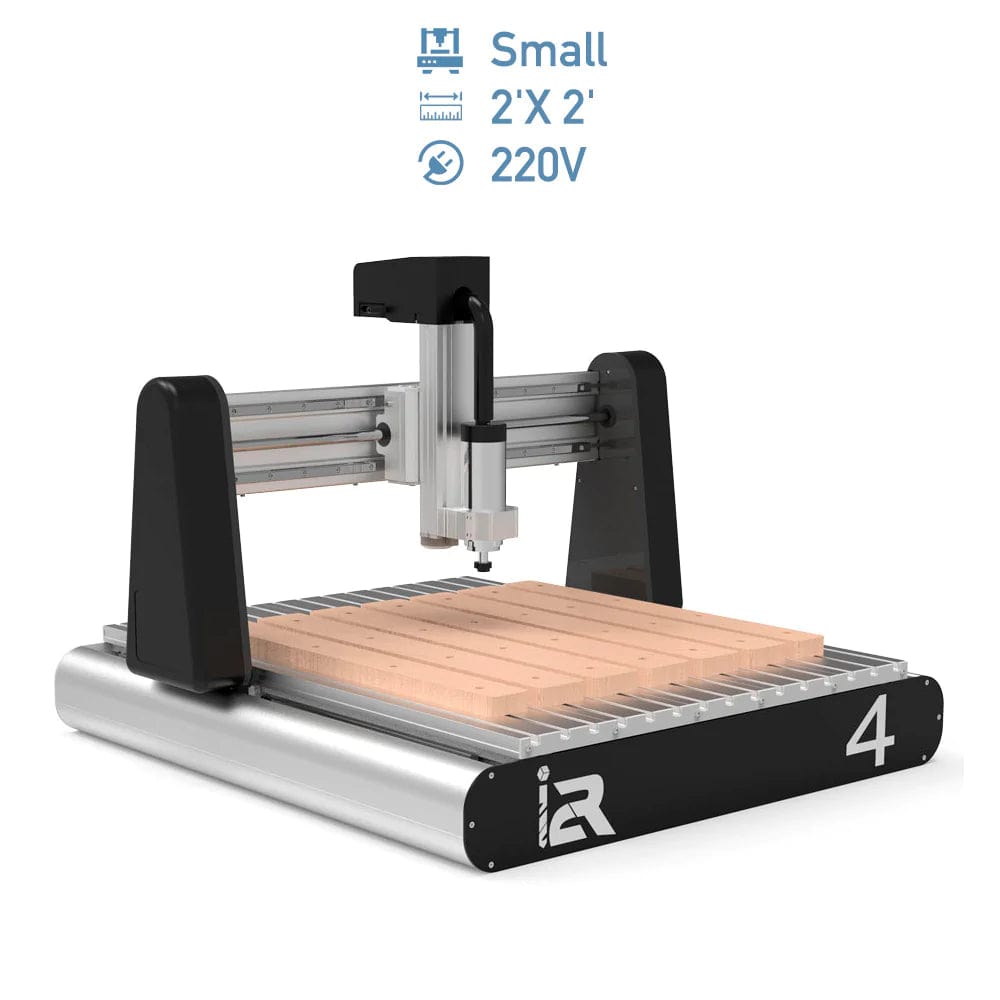

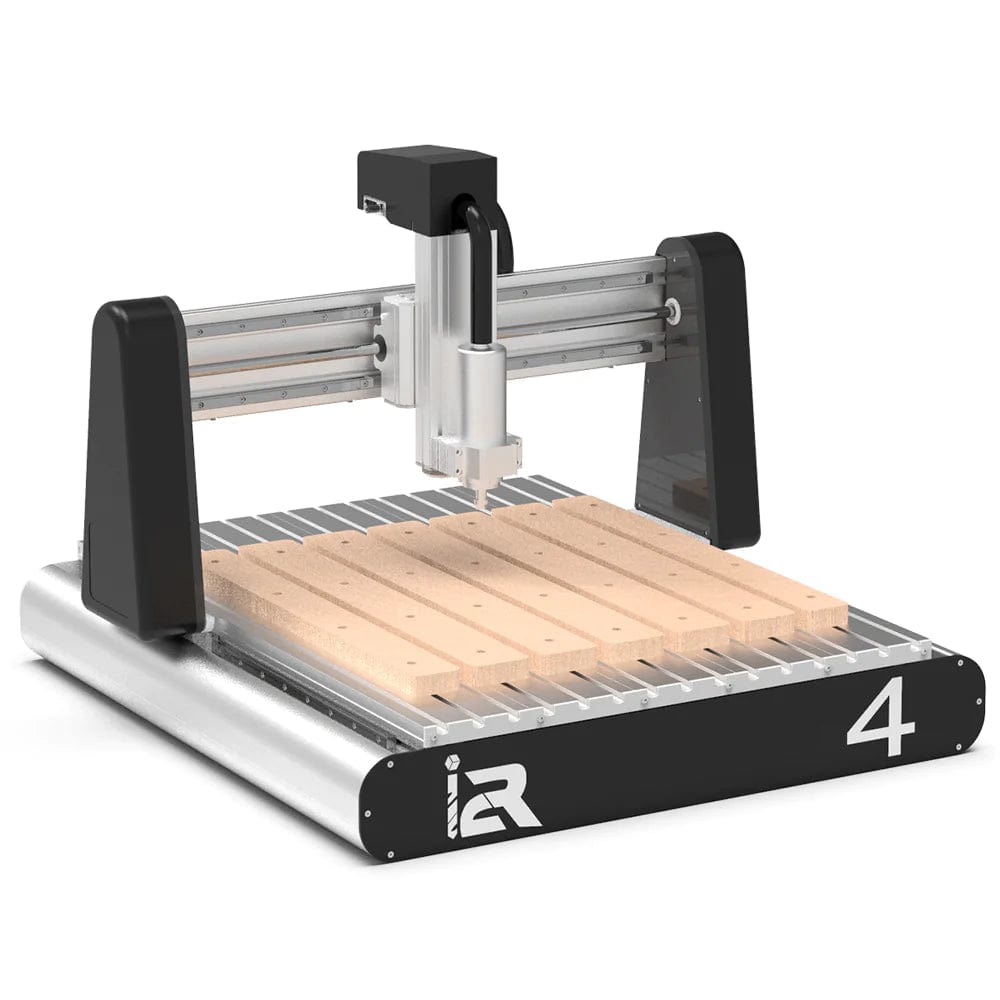

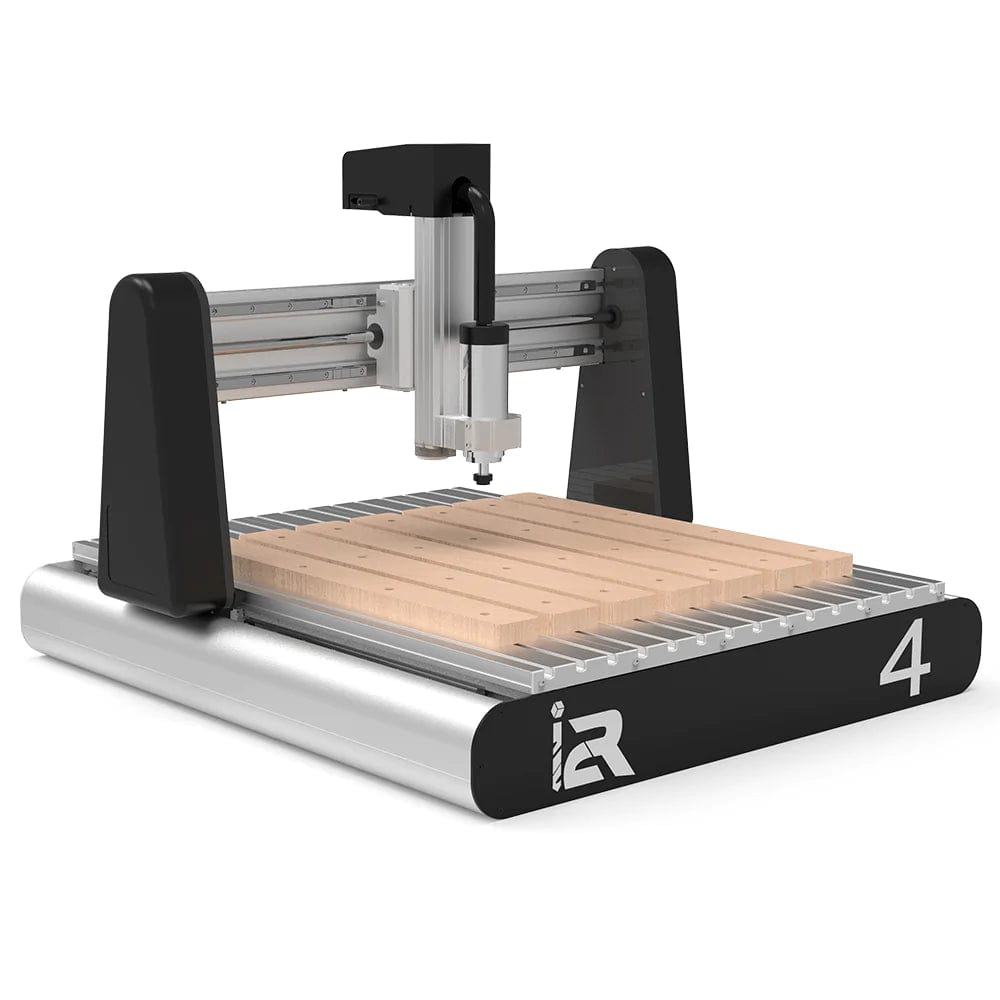

B SERIES CNC - B22 - 2HP SPINDLE SMALL 2' X 2' - 220 V - UNIT ONLY
Small and powerful, the B22 CNC Machine makes no compromises on quality and efficiency. i2R CNC router series takes full advantage of its features and UCCNC software. Intuitive Touch screen, Real time 3d feedback during cuts. i2r CNC machines allow you to take full control of your CNC Machine.
B SERIES CNC - B22 - 2HP SPINDLE SMALL 2' X 2' Product Features
Easy to Assemble CNC Machine
This CNC machine is very intuitive and easy to assemble, designed with comfort and ease of use to make sure you have maximum uptime out of the box.
Small and Robust
The B22 Features a 1 HP Air-Cooled Spindle (110V) operation over a small 24” x 24” work Envelope and is equipped with 3-Axis CNC Table & Gantry
Integrated MDF Spoilboard
Integrated MDF Spoilboard to protect the router table from any damages.
Lifetime Customer Service
i2rCNC Experts are readily available for you and will have your back every time you need them for greater peace of mind and maximum uptime if you ever incur a problem.
I2RCNC B22 2HP Spindle Specifications
- X axis: 610mm (24″)
- Y axis: 610mm (24″)
- Z axis: 135mm (5.31″)
- Spindle Power: 2hp (1.5 W)
- Spindle Type: Electro Spindle
- Spindle Speed: 0-24,000 RPM
MAXIMUM FEED RATE:
- X-, Y-, and Z-Axis: 150 in./min
- 115V, 50~60Hz, 13A, 1-Phase
- Table Size: 28.4″ x 37″
- Machine Weight: 176 lbs
- 5 1/2″ (139.0mm)
LINEAR MOTION COMPONENTS:
- Precision Linear Guideway X/Y/Z
- Precision BallScrew X/Y/Z
- BallScrew Diameter 15mm
- Machine Base: All Welded Steel Frame
- Working Table: High Rigidity Aluminum Extrusion
- Gantry Bridge: High Rigidity Aluminum Extrusion
- Gantry Supports: Aluminum Billet Machined
- BallScrew Diameter
RESOLUTIONS & ACCURACY:
- Positional Accuracy +/- 0.001″inc (.02mm)
- UCCNC PC Control Software
- Tool Touch Off
- MDF Spoilboard
- Collets 1/4″ and 1/8″
- Ethernet Cable
